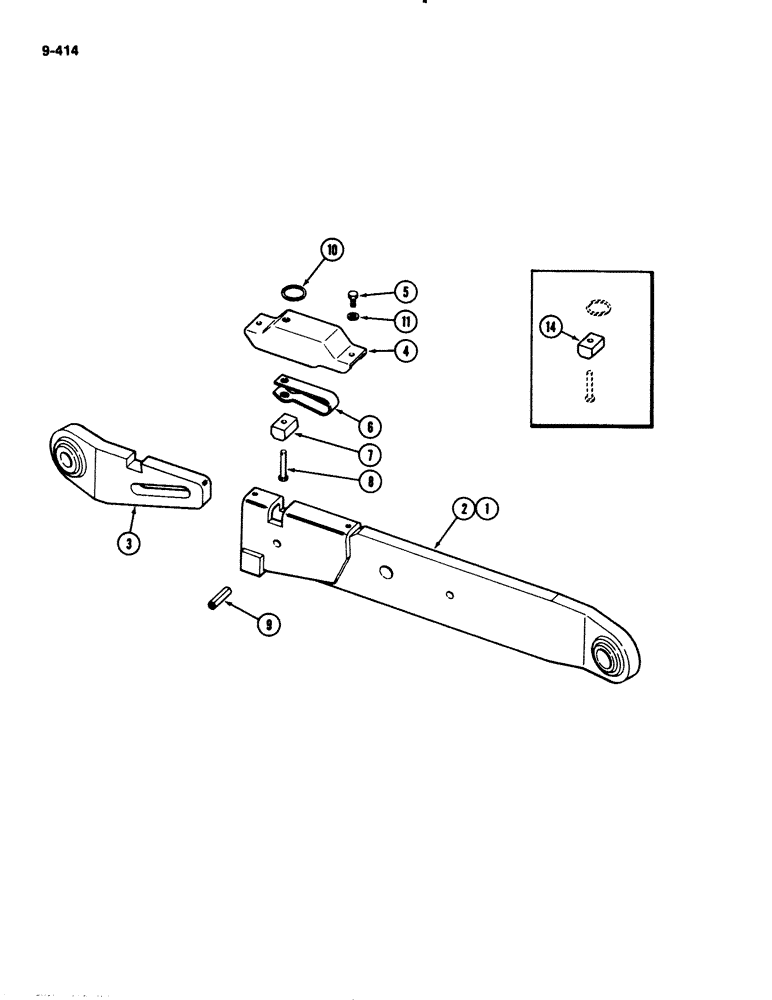

Запчасти Case IH 2294 (9-414) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS

1

A185269

ARM

ASSEMBLY - hitch draft, left (Heavy Duty) (Includes Ref 3 through 9) (Replaces A164991), Includes: Ref. 3 -14

1шт.

Ref #1 - Replaced by A185781, (1 5/8" I.D. on the end) 02/19/96

1шт.

1

A169344

ARM

ASSEMBLY - hitch draft, left (Includes Ref 3 through 9), Includes: Ref. 3 - 14

1шт.

2

A185268

ARM

ASSEMBLY - hitch draft, right (Heavy Duty) (Includes Ref 3 through 9) (Replaces A164990), Includes: Ref. 3 - 14

1шт.

2

A169343

ARM

ASSEMBLY - hitch draft, right, Includes: Ref. 3 - 14

1шт.

3

A185133

END

- draft arm, left (Replaces A48913)

1шт.

3

A185134

END

- draft arm, right (Replaces A48914)

1шт.

4

A48915

COVER

- draft arm latch

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

6

A48917

SPRING

- latch

1шт.

7

A185132

BLOCK

- latch

1шт.

8

A185304

PIN,9.53mm OD x 54.18mm L

- latch

1шт.

9

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

10

A185305

RING

- lock

1шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

A185387

LATCH

BLOCK - latch (Replaces A48916 handle and A48918 block)

1шт.
