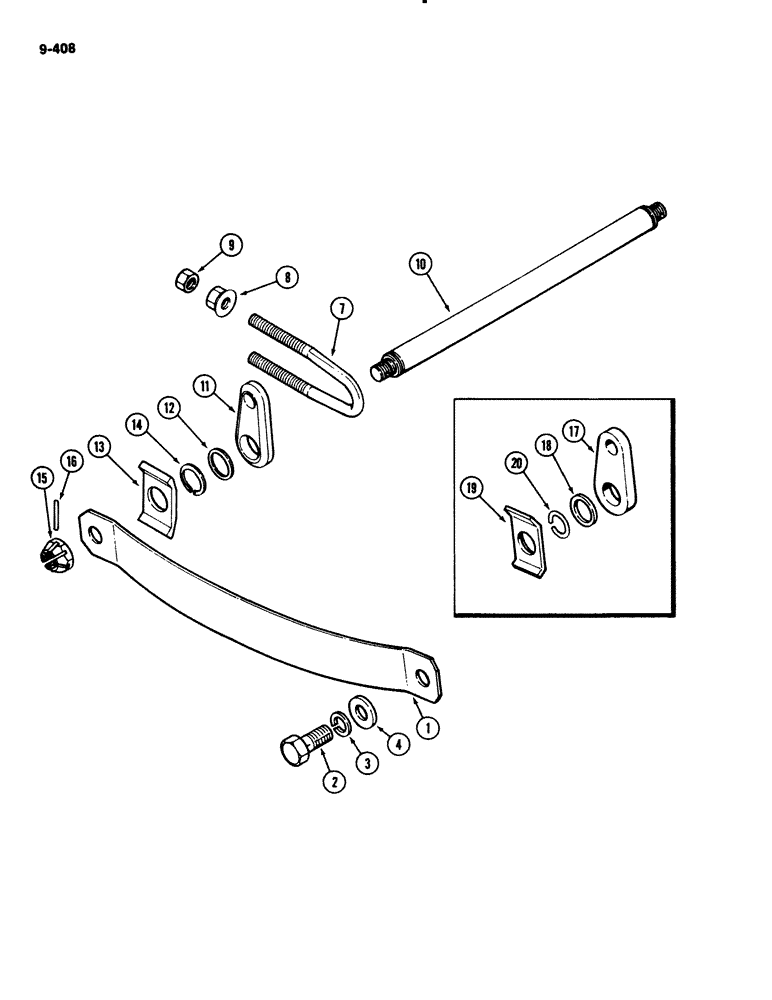

Запчасти Case IH 2294 (9-408) - HITCH SPRINGS AND SHAFT (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

113-924

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

3

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

195-2100

WASHER,1 1/32" x 2" x .238"

- flat, 1-1/32 x 2 x 1/4 inch (26 x 51 x 6 mm)

2шт.

7

A162689

BOLT

U-BOLT - 3/4 inch NC

2шт.

8

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC

4шт.

9

131-1338

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

10

A139126

BRACE

SHAFT - cross, draft arm and sending spring (Order A176635)

1шт.

11

A167660

LINK

- shaft support

2шт.

12

A167661

WASHER

- spacer, draft arm

2шт.

13

A167662

PLATE

SPACER - spring

2шт.

14

A167663

RING

- snap

2шт.

15

A33404

NUT

- cross shaft

2шт.

16

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.

17

A139127

LINK

- shaft support (If equipped)

2шт.

18

A62435

WASHER

- spacer, draftarm (If equipped)

2шт.

19

A139548

BUSHING

PLATE - spacer (If equipped)

2шт.

20

A57588

RING

- retaining (If equipped)

2шт.
