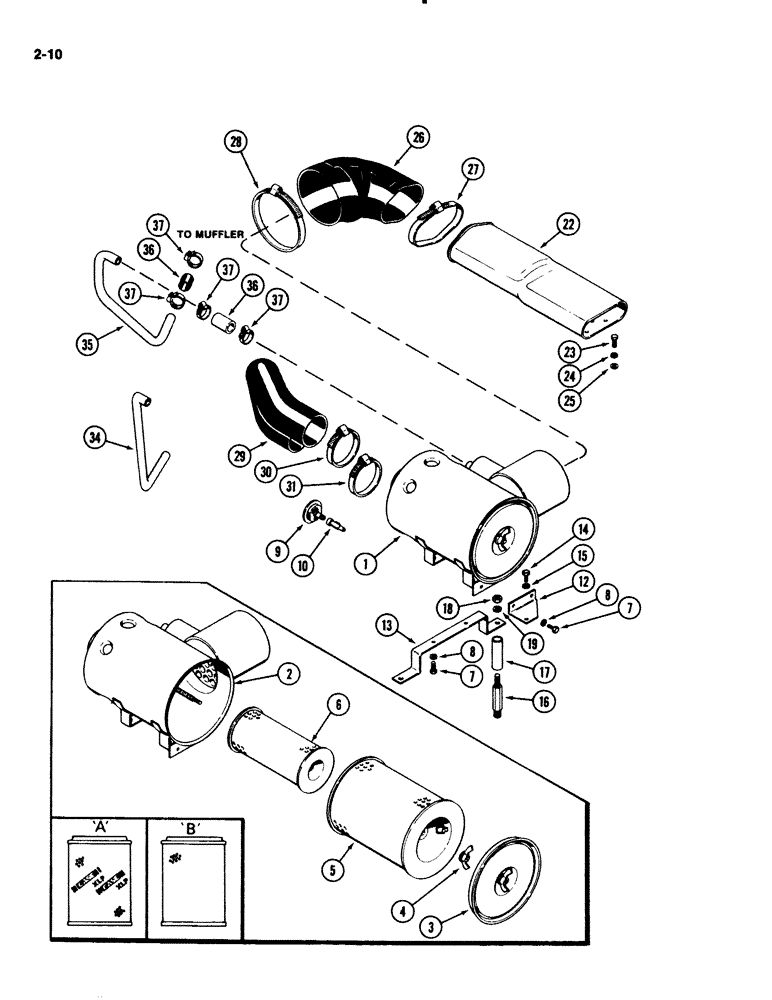

Запчасти Case IH 2294 (2-010) - AIR INDUCTION SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A145055

CLEANER

AIR CLEAN ASSEMBLY - engine, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Reference No. A47138)

1шт.

3

A48266

COVER ASSY

COVER - air cleaner

1шт.

4

A47134

WING NUT

- element retainer

2шт.

5

A47137

AIR FILTER

ELEMENT - primary (See Inset A)

1шт.

5

A171839

AIR CLEANER

ELEMENT - primary (See Insert B)

1шт.

6

A47136

AIR FILTER

ELEMENT - safety

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

A154782

SWITCH

SENDER - air restriction

1шт.

10

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street, 1/8 inch PT

1шт.

12

A145053

BRACKET

- mounting, air cleaner

1шт.

13

A167585

BRACKET

- support, air cleaner

1шт.

14

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(to intake manifold) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

A64577

JACK SCREW,3/8" - 18 x 5.32"

- jack, support

1шт.

17

A147026

BUSHING

SPACER - bracket

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

22

A147748

TUBE

- air intake

1шт.

23

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (To radiator)

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

25

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

2шт.

26

A145057

INTAKE AIR HOSE,6.58" ID x 5.83", SAE J200

6.58" ID, SAE J200

1шт.

27

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - hose, 5-3/8 to 6-1/4 inch (137 to 159 mm)(to tube)

1шт.

28

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

CLAMP - hose, 6-5/8 to 7-1/2 inch (168 to 190 mm)(to air cleaner)

1шт.

29

A145056

INTAKE AIR HOSE,88.90 mm ID x 142.20 mm, SAE J200

- Air cleaner to turbocharger 88.90 mm ID x 142.20 mm, SAE J200

1шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, 3-3/8 to 4-1/2 inch (86 to 114 mm)(to air cleaner)

1шт.

31

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4 inch (59 to 83 mm)(to turbocharger)

1шт.

34

A164628

TUBE

- aspirator (MFD Tractor)

1шт.

35

A147112

TUBE

- aspirator

1шт.

36

A67341

HOSE

- aspirator tube (Order A21093 and, Serial Range: cut-length)

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch

4шт.
