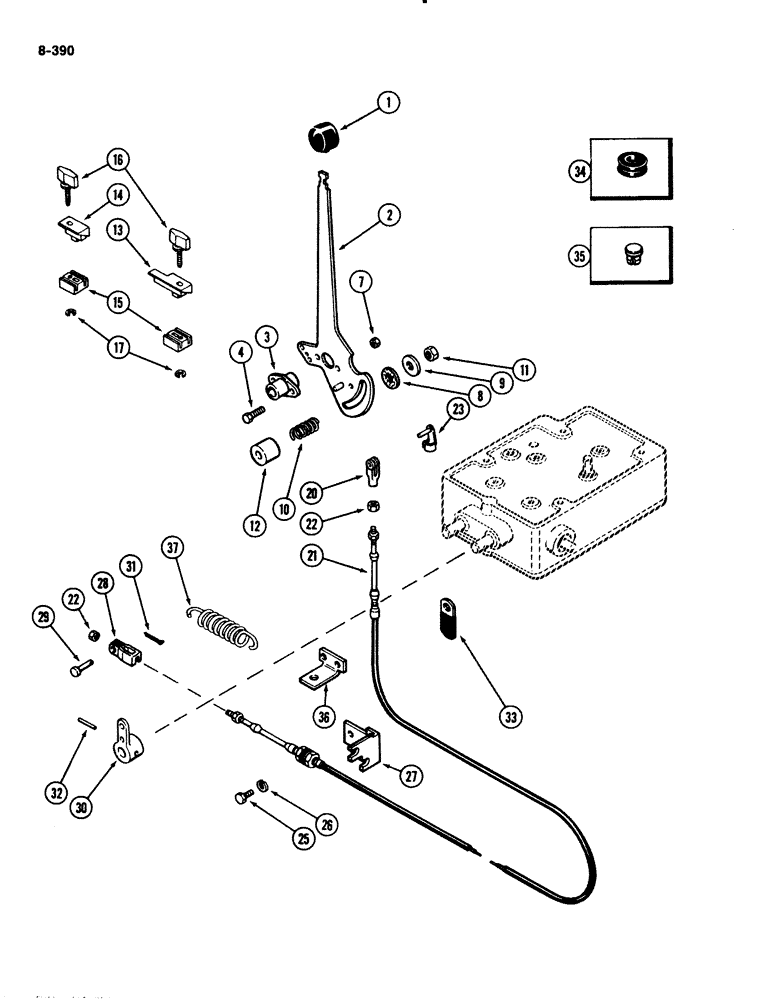

Запчасти Case IH 2294 (8-390) - HITCH DEPTH CONTROL LINKAGE (08) - HYDRAULICS

1

A177438

KNOB

- hand lever (Black)

1шт.

2

A181782

LEVER

- hand (Replaces A141390) (Replaces A180498)

1шт.

3

A162299

BEARING,15.95mm ID

- lever pivot

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A61069

DISC

- friction

1шт.

9

195-2035

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 mm)

1шт.

10

A65583

SPRING

- friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam, 3/8 inch NC

1шт.

12

A160622

BUSHING

SPACER - lever

1шт.

13

A162862

STOP

- hitch, top front

1шт.

14

A163829

STOP

- hitch, top rear

1шт.

15

A162863

LOCK

- hitch stop, bottom

2шт.

16

A162958

BUTTON

KNOB - hitch stop

2шт.

17

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, , knob #X18, .122" Dia, E-Type

2шт.

20

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to hand lever

1шт.

21

A167658

CABLE

- control, hand lever to valve (Replaces A67299)

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

- Keps, No. 10 NF

2шт.

23

A149683

PIN

- spring, yoke to hand lever

1шт.

25

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

A160811

BRACKET

- control cables

1шт.

28

A65265

YOKE

- cable to valve lever

1шт.

29

141-51

CLEVIS PIN,3/16" x .580"

PIN - yoke, 3/16 inch

1шт.

30

A156185

LEVER

- control valve (Replaces A63037)

1шт.

31

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

32

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

A37179

CLIP

-, Serial Range: cable-transmission

1шт.

34

A141389

GROMMET

- cable (Order A145925)

1шт.

35

A162961

PLUG

- cable, 3/4 inch diameter head (19 mm)

1шт.

36

A169807

BRACKET

- hitch spring

1шт.

37

A169810

SPRING

- hitch lever

1шт.
