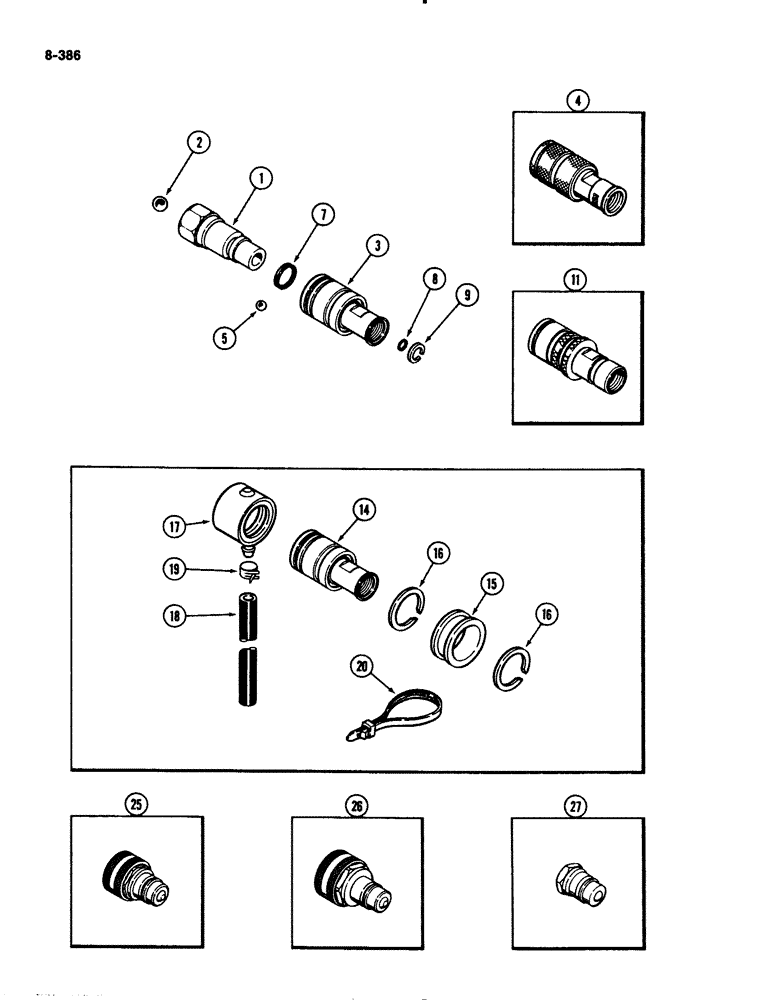

Запчасти Case IH 2294 (8-386) - REMOTE HYDRAULICS, QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick disconnect, male half, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch diameter (13 mm)

1шт.

3

A177478

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female breakaway, Includes: Ref. 5 - 9

1шт.

4

A147888

BREAKER POINTS

COUPLING ASSEMBLY - quick disconnect, female half (Order A177478), Includes: Ref. 5 - 9

1шт.

5

211-5

BALL,3/16" Dia

- 3/16 inch diameter (5 mm)

10шт.

A47220

GASKET KIT

KIT - repair, Includes: Ref. 7 - 9

1шт.

7

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

8

A47222

SEAL

- poppet

1шт.

9

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220)

1шт.

11

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female breakaway (Order A177478)

1шт.

A181447

COUPLING KIT - hydraulic, Includes: Ref. 14 - 20

1шт.

14

A177478

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - breakaway

2шт.

15

A149221

RETAINER

- coupling

2шт.

16

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

4шт.

17

A177479

CAP

ASSEMBLY - dust

2шт.

18

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

2шт.

19

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

20

L76747

STRAP

- nylon (Order L18337)

1шт.

25

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic

1шт.

26

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic

1шт.

27

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2-14 inch internal thread), hydraulic adapters

1шт.
