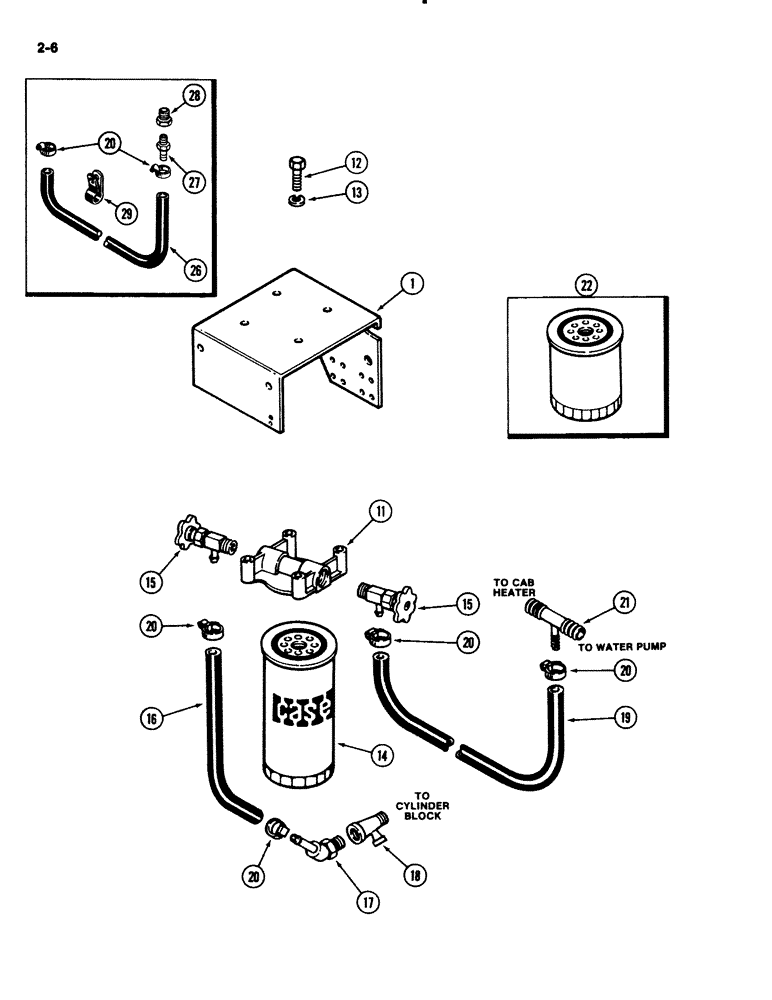

Запчасти Case IH 2294 (2-006) - WATER FILTER, 504BDT DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

SUPPORT - throttle cable and filter head (See Figure 3-057)

1шт.

A46400

KIT

- water filter and conditioner, Includes: Ref. 11 - 21

1шт.

11

A152821

HEAD

- filter and valve

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(See Figure: 3-048) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

A152819

FILTER

CARTRIDGE - water filter (precharged)(See Ref 22)

1шт.

15

A154051

COCK, DRAIN

VALVE - water

2шт.

16

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

17

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 1/4 PT x 3/8 inch hose

1шт.

18

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch, 1/4 x 1/4 x 1/4 inch (in block)

1шт.

19

A154053

HEATER HOSE,0.38" ID x 11.20", SAE 20R3

- Valve to heater hose (Order A161557) 0.38" ID x 11.20", SAE 20R3

1шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

6шт.

21

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose shift

1шт.

22

A151931

FILTER

CARTRIDGE - water filter (service)

1шт.

26

A154065

HOSE,0.38" ID x 36.00", SAE 20R3 PER SAE J20

0.38" ID x 36.00", SAE 20R3 - Filter to Water Pump (Used on Tractors Without Heater)

1шт.

27

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector 3/8" Hose X 1/4" NPTF Beaded

1шт.

28

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - reducer, 1/4 to 1/2 inch PT

1шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- retaining

1шт.
