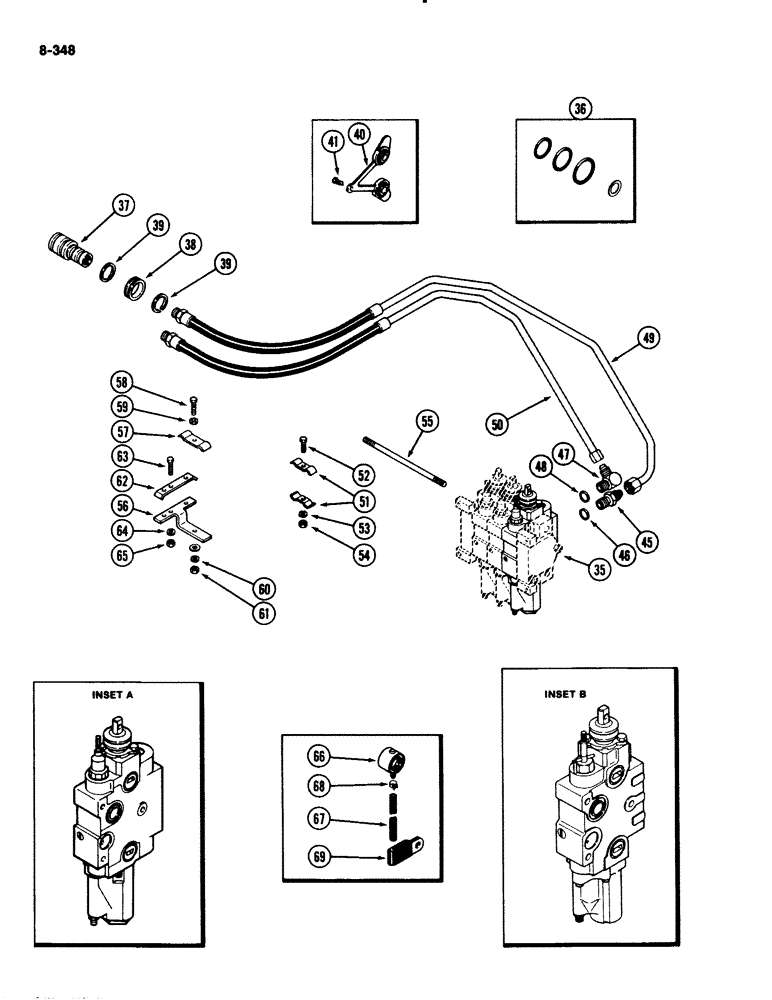

Запчасти Case IH 2294 (8-348) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NO. 3 CIRCUIT, WITHOUT LOAD CHECK (08) - HYDRAULICS

A180262

ATTACHMENT - remote hydraulics, No. 3 circuit (Continued from Figure 8-346) (Replaces A67588), Includes: Ref. 35 - 69 and 1 - 32 on Figure 8-346

1шт.

A67535

ATTACHMENT - remote hydraulics, No. 3 circuit (Continued from Figure 8-346), Includes: Ref. 35 - 69 and 1 - 32 on Figure 8-346

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Inset A) (See Figure 8-364)

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Inset B) (See Figure 8-368)

1шт.

36

A47576

KIT

- seal, with shims (See Page 8-365) (Order components)

1шт.

37

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-386)

2шт.

38

A149221

RETAINER

- coupling

2шт.

39

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

40

A145468

PLUG

- remote coupling dust (In A67535 attachment)

1шт.

41

A162364

FASTENER

- dust plug (In A67535 attachment)

1шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

47

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread, Incl. Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 mm)

1шт.

49

A145905

HOSE

- No. 5 remote coupling

1шт.

50

A145906

HOSE

- No. 6 remote coupling

1шт.

51

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

52

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147507

STUD

- valve mounting, 3/8 NC x 9-7/8 inch

3шт.

56

A147771

BRACKET

- tube clamp support

1шт.

57

A17542

CLAMP

- tube

1шт.

58

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

59

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

61

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

62

A147772

CLAMP

- tube

1шт.

63

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

64

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

65

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

66

A177479

CAP

- dust (A180262 attachment)

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Used with A180262 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining (A180262 attachment)

2шт.

69

A180154

CLAMP

- hose retaining (A180262 attachment)

2шт.
