Запчасти Case IH 2294 (8-342) - REMOTE HYDRAULICS, VALVE, HOSES AND COUPLINGS, 2 CIRCUIT SYSTEM WITHOUT LOAD CHECK (08) - HYDRAULICS

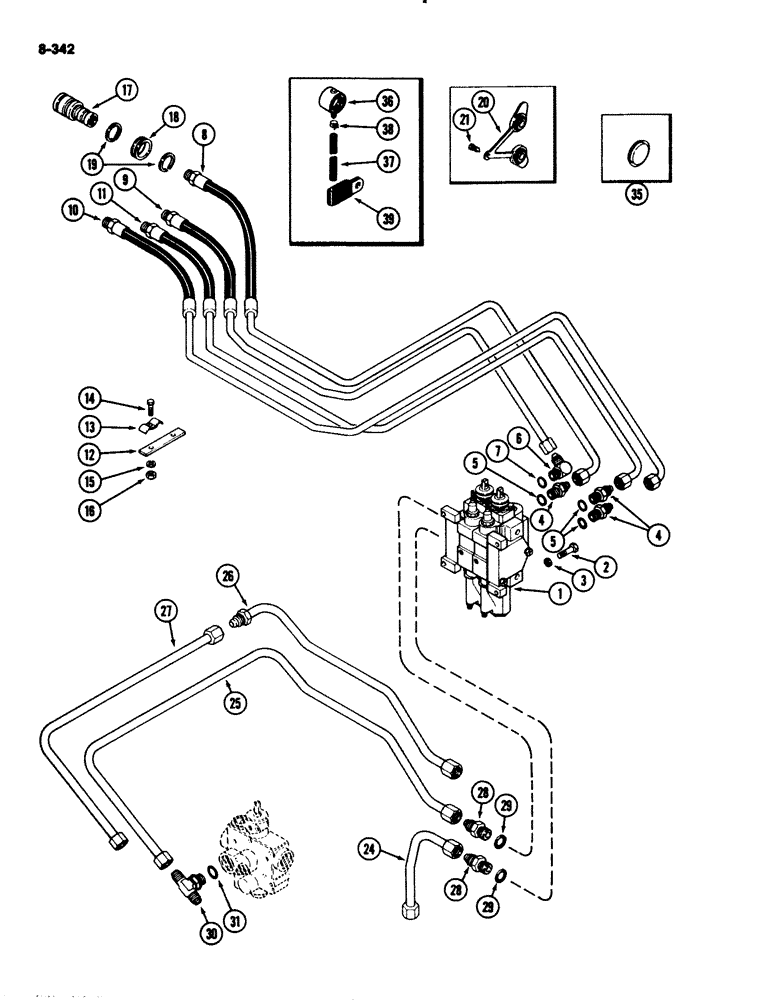

Схема запчастей Case IH 2294 - (8-342) - REMOTE HYDRAULICS, VALVE, HOSES AND COUPLINGS, 2 CIRCUIT SYSTEM WITHOUT LOAD CHECK (08) - HYDRAULICS
15
5
8
37
5
4
26
36
27
19
13
3
29
1
9
38
18
16
11
7
24
39
28
25
10
6
29
30
12
21
31
35
17
28
4
14
20
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - 2 section (See Figure 8-360)

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 mm)

1шт.

8

A145901

HOSE

- valve to No. 1 coupling

1шт.

9

A145902

HOSE

- valve to No. 2 coupling

1шт.

10

A145903

HOSE

- valve to No. 3 coupling

1шт.

11

A145904

HOSE

- valve to No. 4 coupling

1шт.

12

A141174

SUPPORT

- tube clamp

1шт.

13

A63323

CLAMP

- tube

2шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

REF

INSTRUCTION

COUPLING - break-away, remote hose (See Figure 8-387)

4шт.

18

A149221

RETAINER

- coupling

4шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

8шт.

20

A145468

PLUG

- dust, coupling

2шт.

21

A162364

FASTENER

- dust, Serial Range: plug-cab

2шт.

24

A147058

TUBE

- remote, Serial Range: valve-filter

1шт.

25

REF

INSTRUCTION

TUBE - regulator valve to remote valve (J I Case Installed) (Order Ref 26 and 27)

1шт.

26

A162503

TUBE

- regulator valve to remote valve (left section for service)

1шт.

27

A162502

TUBE

- regulator valve to remote valve (right section for service)

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 29

3шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

30

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, 3/4 tube x 1-1/16-12 inch thread, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

35

353-590

PLUG,1 7/8"

- button, 1-7/8 inch (48 mm) (platform hose opening)

4шт.

36

A177479

CAP

- dust

4шт.

37

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

38

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

4шт.

39

A180154

CLAMP

- hose retaining

1шт.
