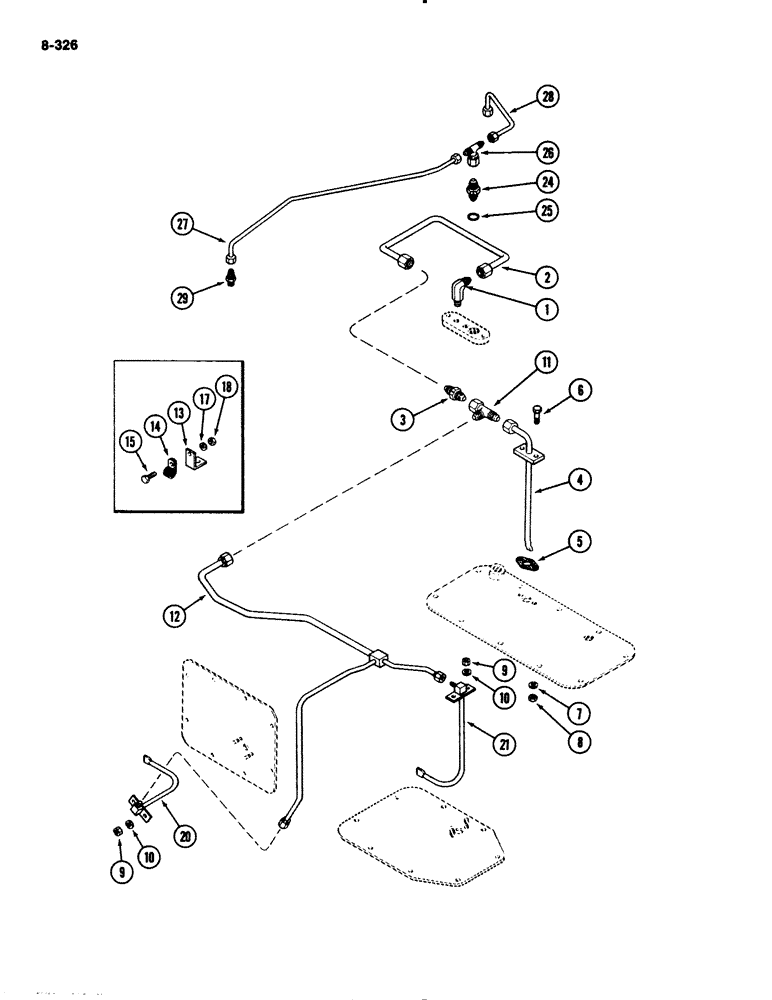

Запчасти Case IH 2294 (8-326) - TRANSMISSION LUBRICATION, TRANSMISSION SERIAL NUMBER 16264576 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-1084
ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-12 NPTF, XLG
- 90 degree, 1/2 tube 3/4-16 thread x 1/4 inch PT
1шт.
2
A167483
TUBE - spiral bevel supply
1шт.
3
A160216
FITTING
VALVE - check, lubrication tube
1шт.
4
A165324
PIPE
TUBE - spiral bevel lubrication
1шт.
5
A38212
GASKET
- lubrication tube
1шт.
6
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
7
92-5
LOCK WASHER,5/16"
2шт.
8
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16 inch NC
2шт.
9
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
10
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
11
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
- valve to lubrication tubes 37º, 3/4"-16 x 3/4"-16, Fem Sw Run
1шт.
12
A177203
TUBE
- lubrication, transmission gear
1шт.
13
A162527
BRACKET
- tube retaining clamp
2шт.
Ref #13 - Use only one A162527. Also use one A185636 bracket. 02/19/96
1шт.
14
49838
CLAMP
- tube retaining
2шт.
15
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
17
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
18
9635082
NUT,5/16" - 18, Gr 5
2шт.
20
A179070
PIPE
TUBE - lubrication, second and third gear
1шт.
21
A168919
PIPE
TUBE - lubrication, transfer gear
1шт.
24
A160216
FITTING
VALVE - check (See Note)
1шт.
26
218-856
TEE,37 Degree, 9/16"-18, x 3/4"-16, Fem Sw Br
ASSEMBLY - swivel (See Note) 3/8 tube 9/16-18 x 1/2 tube 3/4-16 inch thread
1шт.
Used on tractors equipped with 3/4 inch tapped hole charge pump outlet cover.
1шт.
27
A180575
TUBE
- planetary lubrication, right
1шт.
28
A180574
TUBE
- planetary lubrication, left
1шт.
29
A149515
CONNECTOR, ELEC
CONNECTOR - straight, 1/4 PT x 9/16 inch NF
2шт.
25
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 inch (13 x 17 mm)
1шт.
Used on tractors equipped with 3/4 inch tapped hole charge pump outlet cover.
1шт.
Выбрано товаров: 28
