Запчасти Case IH 2294 (8-320) - HYDRAULICS, OIL FILTER AND SCREEN (08) - HYDRAULICS

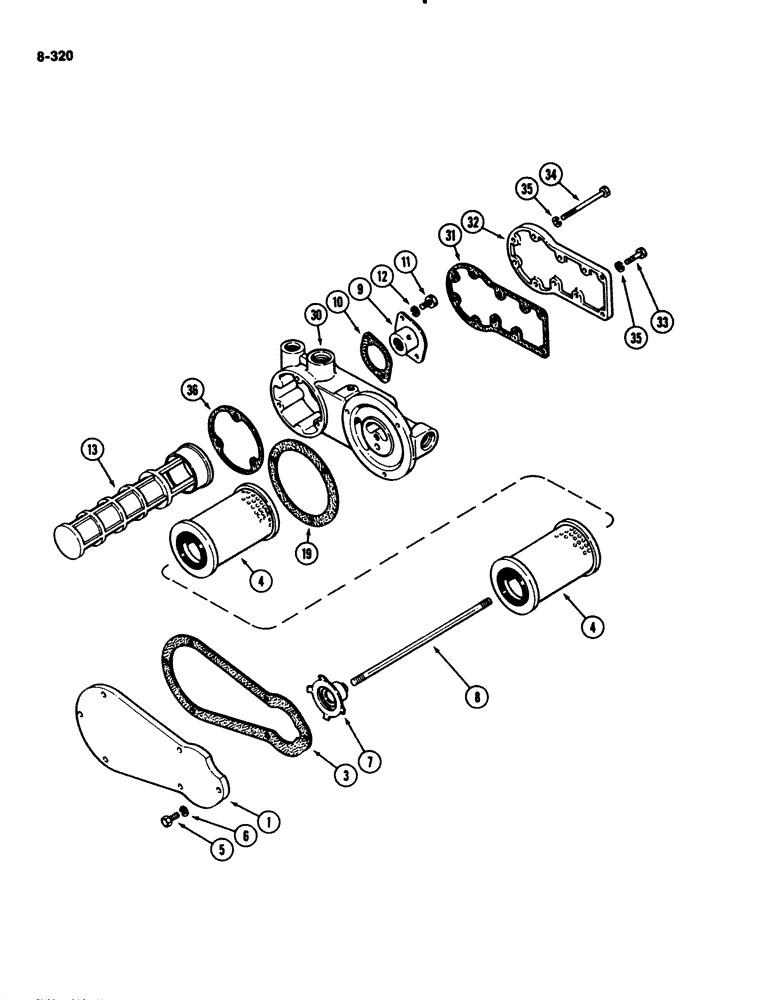

Схема запчастей Case IH 2294 - (8-320) - HYDRAULICS, OIL FILTER AND SCREEN (08) - HYDRAULICS
7
3
1
36
4
4
19
32
6
34
13
6
5
35
9
35
12
31
11
33
10
30

Артикул

Название

Примечание

Количество

1

A141407

GASKET

COVER - right side

1шт.

3

A141408

GASKET

- cover

1шт.

4

A176593

HYDRAULIC OIL FILTER

KIT - filter element (Set of 2) (Replaces A46403)

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

7

A164424

VALVE

- by-pass

1шт.

8

A147922

STUD

- filter element, 14-1/4 inch (Order H237750)

1шт.

9

A63343

REGULATOR

- pressure, filter oil

1шт.

10

A147062

GASKET

-, Serial Range: regulator-housing

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A142025

SCREEN

- oil inlet (Replaces A168001)

1шт.

19

A149986

GASKET

- housing

1шт.

30

A167841

HOUSING

- filter cover, left side

1шт.

31

A161436

GASKET

- housing cover

1шт.

32

A161437

COVER

- filter housing

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

8шт.

34

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

4шт.

35

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

12шт.

36

A149985

GASKET

- housing

1шт.

Выбрано товаров: 20
