Запчасти Case IH 2294 (8-314) - HYDRAULICS, POWER SHIFT CONTROL CIRCUIT (08) - HYDRAULICS

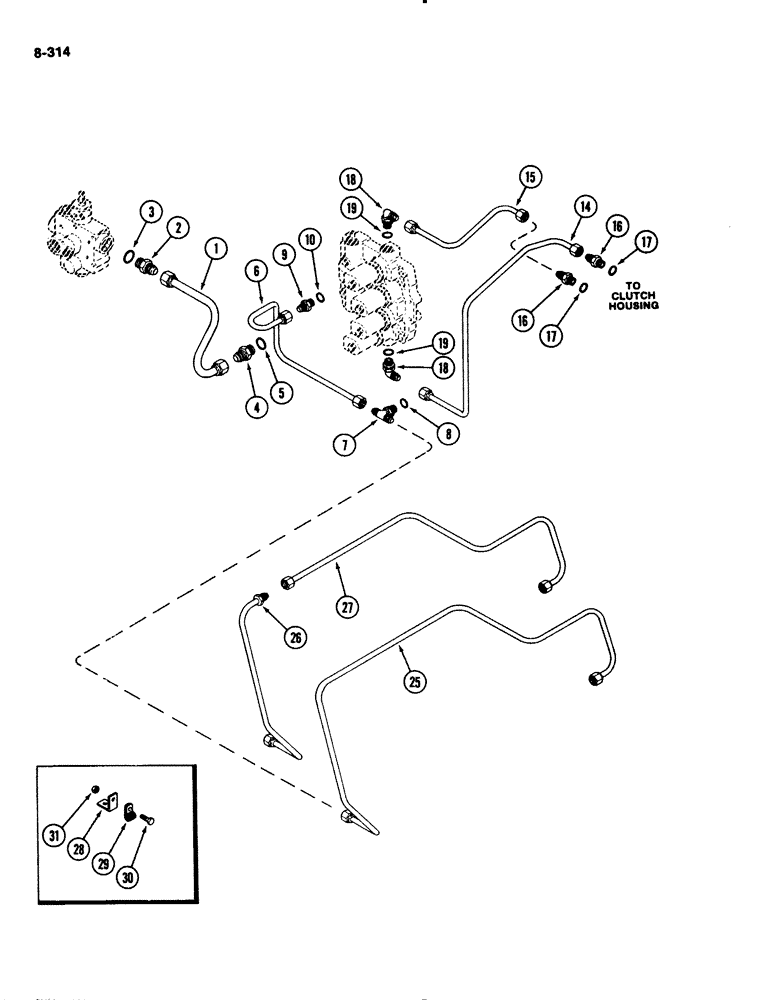

Схема запчастей Case IH 2294 - (8-314) - HYDRAULICS, POWER SHIFT CONTROL CIRCUIT (08) - HYDRAULICS
17
6
19
28
30
9
18
15
10
29
8
3
1
31
2
7
16
26
5
25
17
4
16
18
14
19
27

Артикул

Название

Примечание

Количество

1

A176435

TUBE

- supply, regulator valve to control valve (Replaces A166532)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

4

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 x 5/8 tube 7/8-14 inch thread, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 mm)

1шт.

6

A166533

TUBE

- control valve to shift manifold

1шт.

7

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjustable, 1/2 tube 3/4-16 inch thread, Includes: Ref. 8

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 10

1шт.

14

A166530

TUBE

- fill, (C1) clutch

1шт.

15

A166531

TUBE

- fill, (C4) clutch

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 17

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjusting, 1/2 tube 3/4-16 inch thread, Includes: Ref. 19

2шт.

25

NSS

NOT SOLD SEPARAT

TUBE - oil cooler return (J I Case Installed) (Order A167134 and A167135) (Reference No. A167133)

1шт.

26

A167134

TUBE

- oil cooler return (Service only)

1шт.

27

A167135

TUBE

- oil cooler return (Service only)

1шт.

28

A164948

BRACKET

- brake tube clamp

1шт.

29

49838

CLAMP

- oil cooler tube retaining

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.

Выбрано товаров: 23
