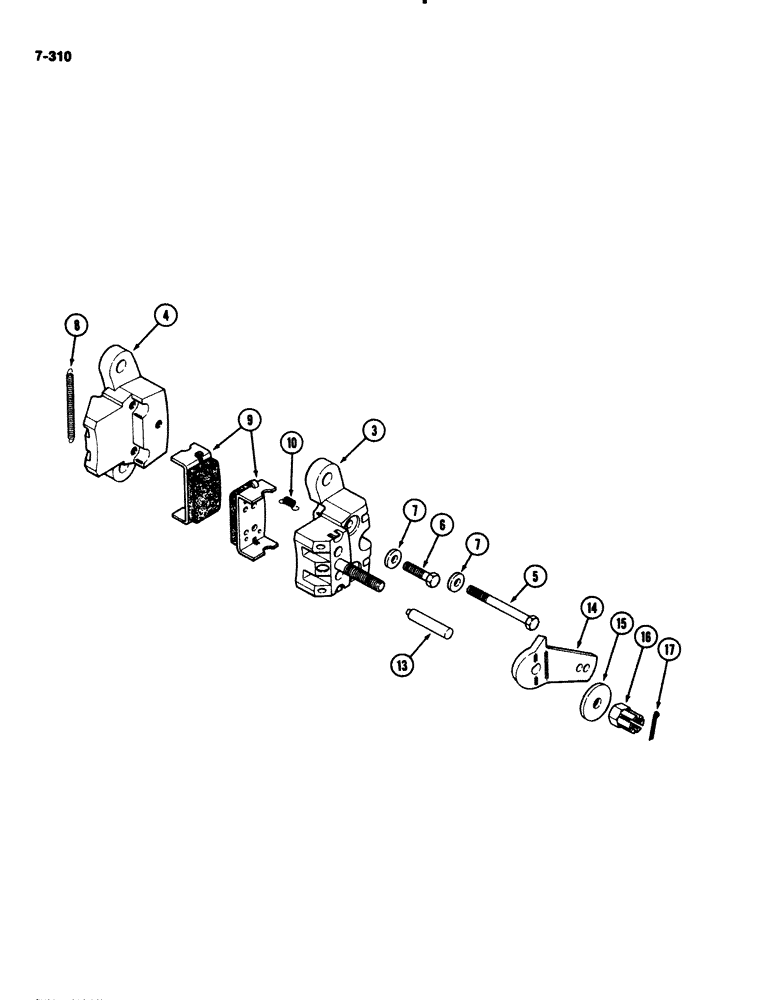

Запчасти Case IH 2294 (7-310) - CALIPER DISC BRAKE ASSEMBLY, MFD TRACTORS, IF EQUIPPED (07) - BRAKES

A156788

BRAKE

ASSEMBLY - mechanical caliper disc, Includes: Ref. 3 - 17

1шт.

A48215

HOUSING

BODY ASSEMBLY - brake, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - brake, with stud (Order A48215)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - brake, without stud (Order A48215)

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 3-3/4 inch

2шт.

6

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

7

A48221

WASHER

- 13/16 inch (21 mm)

3шт.

8

S107628

SPRING

- pad return

1шт.

9

S107627

BRAKE PAD

PAD - brake (Replaces A48216)

2шт.

10

A48217

SPRING

- pad return

2шт.

13

S113626

PIN

- brake push

2шт.

14

A48218

CAM

- brake

1шт.

15

S113628

WASHER

- cam retaining (Replaces A48219)

1шт.

16

A48220

NUT

- hex slotted, 1/2 inch NC

1шт.

17

132-341

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.
