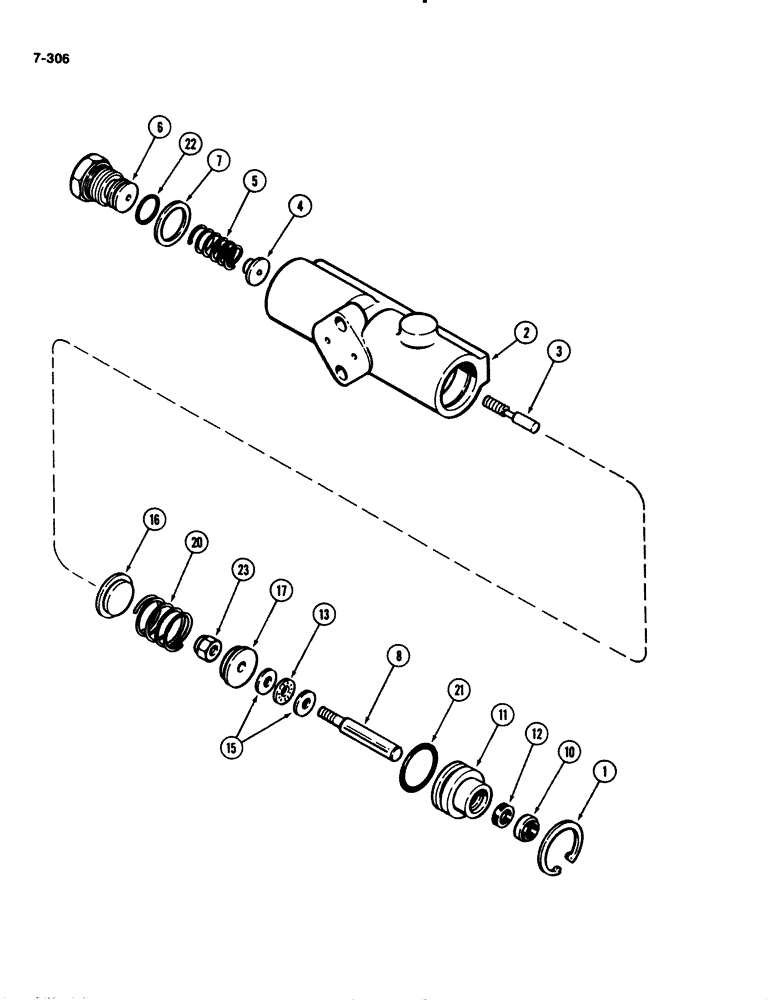

Запчасти Case IH 2294 (7-306) - PRESSURE REGULATOR VALVE, (IF EQUIPPED) (07) - BRAKES

A147690

VALVE

ASSEMBLY - pressure regulating, Includes: Ref. 1 - 23

1шт.

1

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A147690) (Reference No. A47859)

1шт.

3

A47860

SPOOL

- valve

1шт.

4

A47861

GUIDE

- spring

1шт.

5

A47962

VALVE POPPET

SPRING - spool

1шт.

6

A47863

PLUG

- orifice

1шт.

7

A47864

WASHER

- orifice plug (copper)

1шт.

Included in Valve Seal Kit A48463.

1шт.

8

A47865

STEM

- valve

1шт.

10

A47866

WIPER SEAL

- valve stem

1шт.

Included in Valve Seal Kit A48463.

1шт.

11

A47867

GLAND

- valve stem

1шт.

12

A47868

RING

- gland

1шт.

13

A47869

BEARING

- thrust

1шт.

15

A47870

SHIM

RACE - thrust bearing

2шт.

16

A47871

GUIDE

- spring

1шт.

17

A47872

GUIDE

- spring

1шт.

20

A47873

SPRING

- valve

1шт.

21

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- gland

1шт.

Included in Valve Seal Kit A48463.

1шт.

22

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- orifice plug

1шт.

Included in Valve Seal Kit A48463.

1шт.

23

131-30

LOCK NUT,1/4"-28, G8

NUT - hex lock, 1/4 inch NF

1шт.

Ref #23 - Use 231-2444 Nut 02/19/96

1шт.

A48463

SEAL

KIT - valve, Includes Ref. 7, 10, 12, 21 & 22

1шт.
