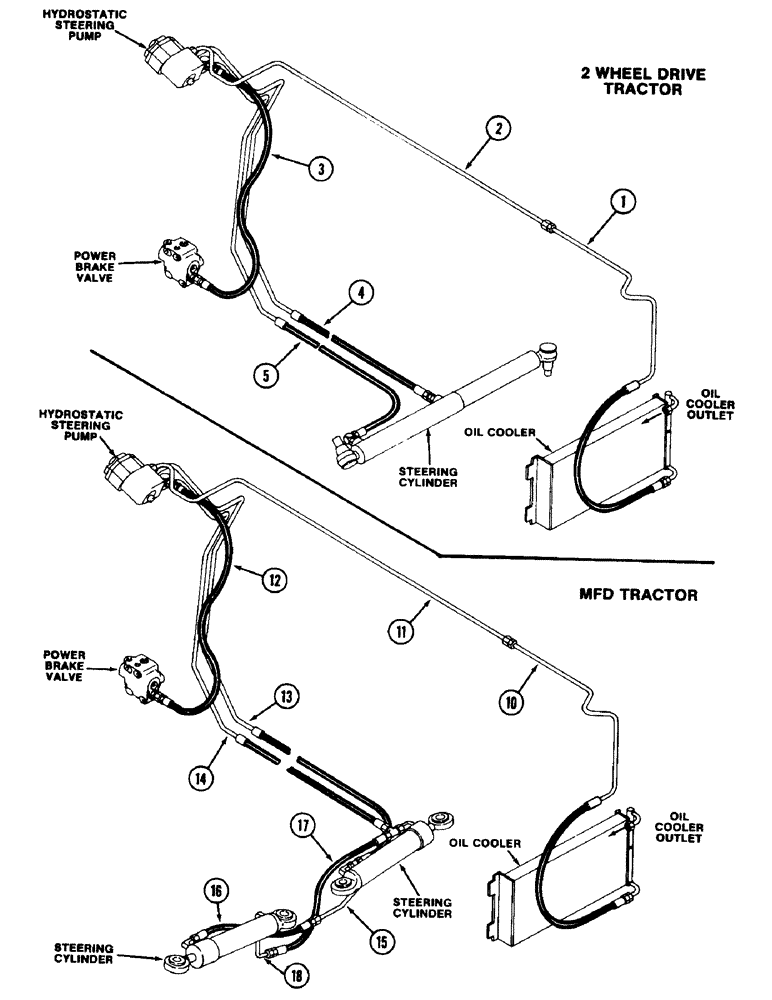

Запчасти Case IH 2294 (1-020) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE (00) - PICTORIAL INDEX

1

Oil Cooler Inlet Hose, Page 5-127

1шт.

2

Oil Cooler to Steering Pump Tube, Page 5-127

1шт.

3

Steering Pump to Brake Valve Hose, Page 5-123

1шт.

4

Left Steerign Cylinder Hose, Page 5-123

1шт.

5

Right Steering Cylinder Hose, Page 6-123

1шт.

10

Oil Cooler Inlet Hose, Page 5-127, mechanical front drive

1шт.

11

Oil Cooler to Steering Pump Tube, Page 5-127, mechanical front drive

1шт.

12

Steering Pump to Brake Valve Hose, Page 5-123, mechanical front drive

1шт.

13

Left Steering Cylinder Hose, Page 5-123, mechanical front drive

1шт.

14

Right Steering Cylinder Hose, Page 5-123, mechanical front drive

1шт.

15

Left Steering Tube, Page 5-125, mechanical front drive

1шт.

16

Steering Hydraulic Hose, Page 5-125, mechanical front drive

1шт.

17

Steering Hydralic Hose, Page 5-125, mechanical front drive

1шт.

18

Right Steering Tube, Page 5-125, mechanical front drive

1шт.
