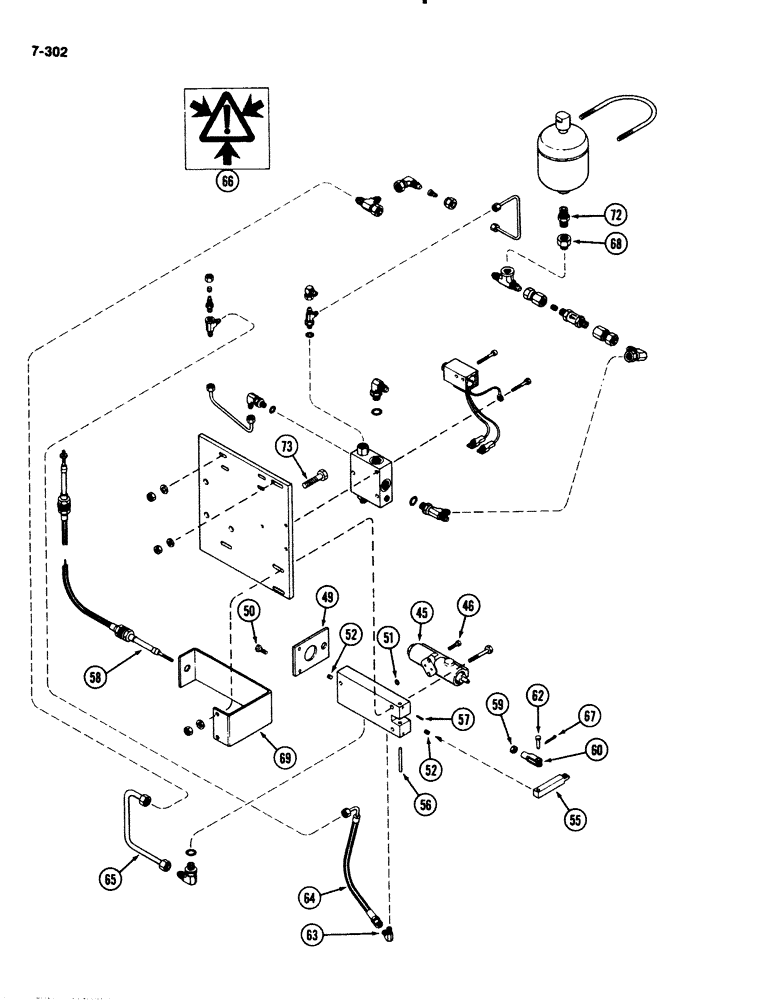

Запчасти Case IH 2294 (7-302) - EMERGENCY HAND BRAKE, ACCUMULATOR SECTION, IF EQUIPPED (07) - BRAKES

A160617

BRAKE

ATTACHMENT - emergency hand brake (Continued from Figure 7-300), Includes: Ref. 45 - 73 and 1 - 44 on Figure 7-300

1шт.

45

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 7-306)

1шт.

46

61-516

HEX SOC SCREW,5/16"-18 x 1"

BOLT - hex socket head, 5/16 NC x 1 inch

2шт.

49

A149095

BRACKET

- cable mounting

1шт.

50

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

51

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- pressure valve (Order N8539)

2шт.

52

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8 inch PT

2шт.

55

A149096

LINK

- valve actuating

1шт.

56

A147859

PIN

- pivot, link

1шт.

57

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

58

A135243

CABLE

ASSEMBLY - control

1шт.

59

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

60

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - clevis, adjustable

1шт.

62

141-52

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

63

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/4 tube 7/16-20 thread x 1/8 inch PT

1шт.

64

A160915

HOSE

ASSEMBLY - manifold drain

1шт.

65

A160560

TUBE

ASSEMBLY -, Serial Range: acummulator-manifold

1шт.

66

321-4675

DECAL

- pressure symbol

1шт.

67

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

68

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

CONNECTOR - straight adapter, 3/8 to 1/2 inch PT

1шт.

69

A160914

GUARD

- pressure valve

1шт.

72

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - 1/2 inch PT

1шт.

73

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.
