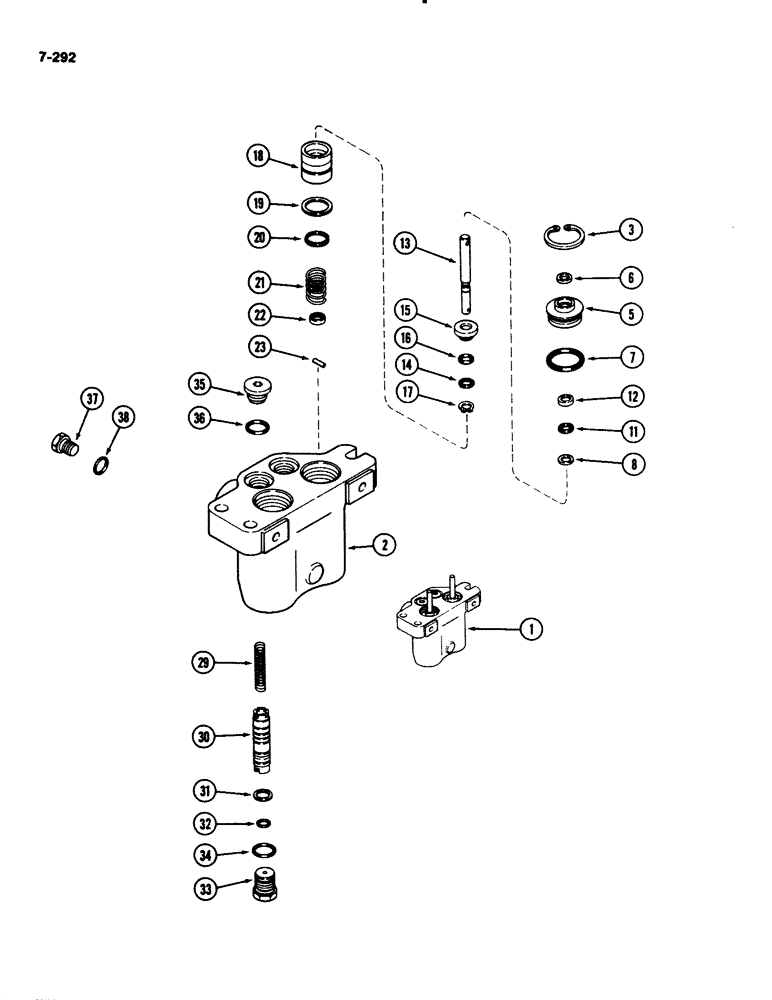

Запчасти Case IH 2294 (7-292) - MASTER BRAKE VALVE ASSEMBLY (07) - BRAKES

1

G105024

VALVE

ASSEMBLY - brake, master cylinder, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Reference No. G105023)

1шт.

3

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , piston stop (order components) 1.375", Int, #137

2шт.

G101064

PISTON

ASSEMBLY - valve

2шт.

G101064 piston assy and G101063 stop assy, both numbers must be ordered in order to receive items 5 - 17.

1шт.

G101063

STOP

ASSEMBLY - piston

1шт.

G101064 piston assy and G101063 stop assy, both numbers must be ordered in order to receive items 5 - 17.

1шт.

5

G101061

STOP - piston (Order G101063)

1шт.

6

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- brake

1шт.

7

G106482

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

- piston stop

1шт.

8

G101070

RING

- backup

1шт.

11

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- piston stop (Order N8539)

1шт.

12

G101065

SEAL RETAINER

RETAINER - seal

1шт.

13

G101059

PIN,9.53mm OD x 110.62mm L

- piston

1шт.

14

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rod

1шт.

15

G101060

WASHER

- seal

1шт.

16

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- seal washer

1шт.

17

G10659

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

G101062

PISTON

ASSEMBLY - brake, Includes: Ref. 18 - 23

1шт.

18

G103500

PISTON - brake valve (Order G101062)

1шт.

19

G101302

RING

SEAL - piston ring

1шт.

20

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- piston

1шт.

21

G101303

SPRING

- piston

1шт.

22

G101067

RETAINER

- spring

1шт.

23

G101304

PIN

- retainer

1шт.

29

A59950

SPRING

- booster spool

2шт.

30

G102241

SPOOL - booster (Order G102283), Includes: Ref. 31 and 32

2шт.

31

A59951

RING

- backup

1шт.

32

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Booster spool

1шт.

33

A59948

PLUG

- reducer

2шт.

35

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, 1/2 tube, Incl Ref 36 Hex Soc, 3/4"-16 ORB

2шт.

37

G105879

PLUG

- bleeder (If equipped)

2шт.

38

G105598

GASKET

WASHER - bleeder plug (If equipped)

2шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

2шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 mm)

1шт.
