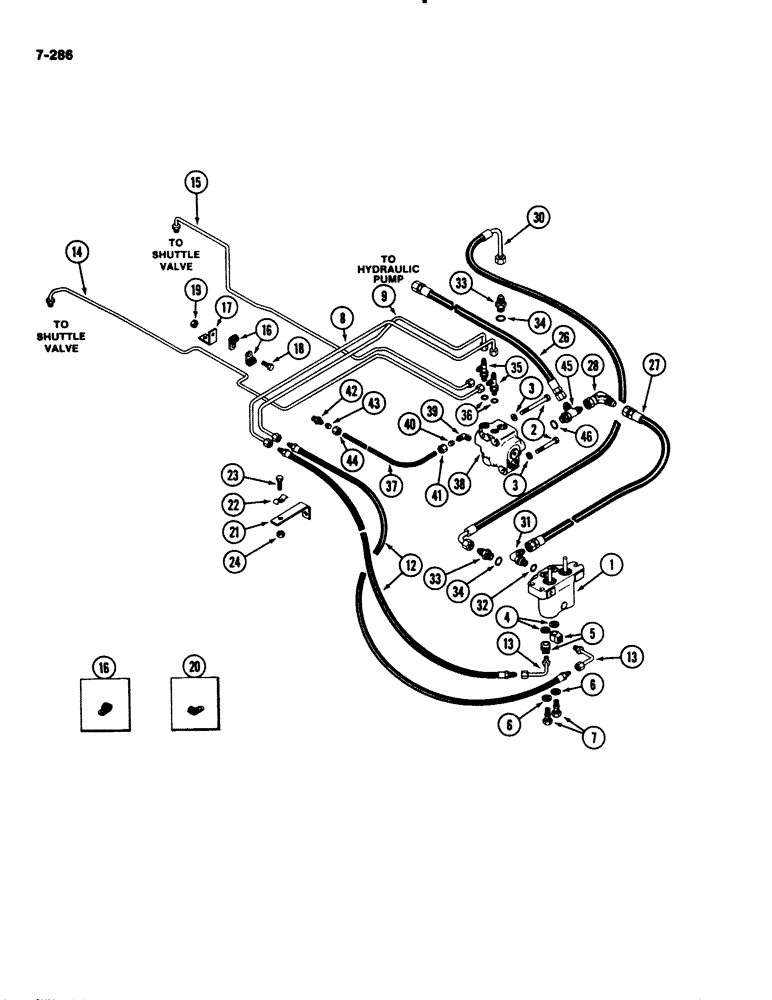

Запчасти Case IH 2294 (7-286) - BRAKE VALVE, HOSES AND TUBES (07) - BRAKES

1

REF

INSTRUCTION

VALVE ASSEMBLY - power brake, master (See Figure 7-292)

1шт.

2

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

2

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, fitting

2шт.

5

A18531

FITTING

- brake tube

2шт.

6

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, fitting

2шт.

7

A12864

BOLT

- fitting

2шт.

8

A166603

TUBE

- brake, right front

1шт.

9

A166604

TUBE

- brake, left front

1шт.

12

A164950

HYDRAULIC HOSE,0.25" ID x 15.50", SAE 100R1 per SAE J517

- Brake, Front 0.25" ID x 15.50", SAE 100R1 per SAE J517

2шт.

13

A164949

TUBE

- brake, front

2шт.

14

A166605

TUBE

- brake, right rear

1шт.

15

A166606

TUBE

- brake, left rear

1шт.

16

49851

SHIELD

- brake tube

2шт.

17

A164948

BRACKET

- clamp retaining

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

R13002

CLAMP

- brake tube

1шт.

21

A149866

BRACKET

- hose clamp

1шт.

22

A63323

CLAMP

- hose

1шт.

23

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

131-634

SPRING NUT,J, Ret, 3/8"-16

- hex lock, 3/8 inch NC

1шт.

26

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Hydraulic pump to valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

27

A180958

HOSE,0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

- master cylinder inlet (Replaces A166601 and A177846) 0.25" ID x 28.00", SAE J516, SAE 100R1, SAE J343, SAE J517

1шт.

28

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

ASSEMBLY - 90 degree swivel, 1/2 tube 3/4-16 inch thread

1шт.

30

A177847

HOSE

- master cylinder drain (Replaces A169730)

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSEMBLY - 90 degree adjustable, 3/8 tube 9/16-18 inch thread, Includes: Ref. 32

1шт.

33

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube, 3/4-16 thread x 1/4 tube 7/16-20 inch thread, Includes: Ref. 34

2шт.

35

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - adjustable, 1/4 tube 7/16-20 inch thread, Includes: Ref. 36

2шт.

36

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 mm)

1шт.

37

A75811

TUBE

- nylon, 34 inch (864 mm) (Order A167912 hose 152 inch long)

1шт.

38

REF

INSTRUCTION

VALVE ASSEMBLY - brake (See Figure 7-288)

1шт.

39

222-2641

ELBOW,90 Degree, 17/32"-24 x 1/4" NPT, Comp

ASSEMBLY - 90 degree, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 40 and 41

1шт.

40

222-2611

SLEEVE

- 3/8 inch tube

1шт.

41

222-2601

NUT

NUT - hex, 3/8 inch tube

1шт.

42

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

CONNECTOR ASSEMBLY - straight, 3/8 tube 17/32-24 thread x 1/4 inch PT, Includes: Ref. 43 and 44

1шт.

43

222-2611

SLEEVE

- 3/8 inch tube

1шт.

44

222-2601

NUT

NUT - hex, 3/8 inch tube

1шт.

45

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjustable, 1/4 tube 7/16-20 inch thread, Includes: Ref. 46

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 mm)

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 16 x 2 mm)

1шт.

46

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 mm)

1шт.
