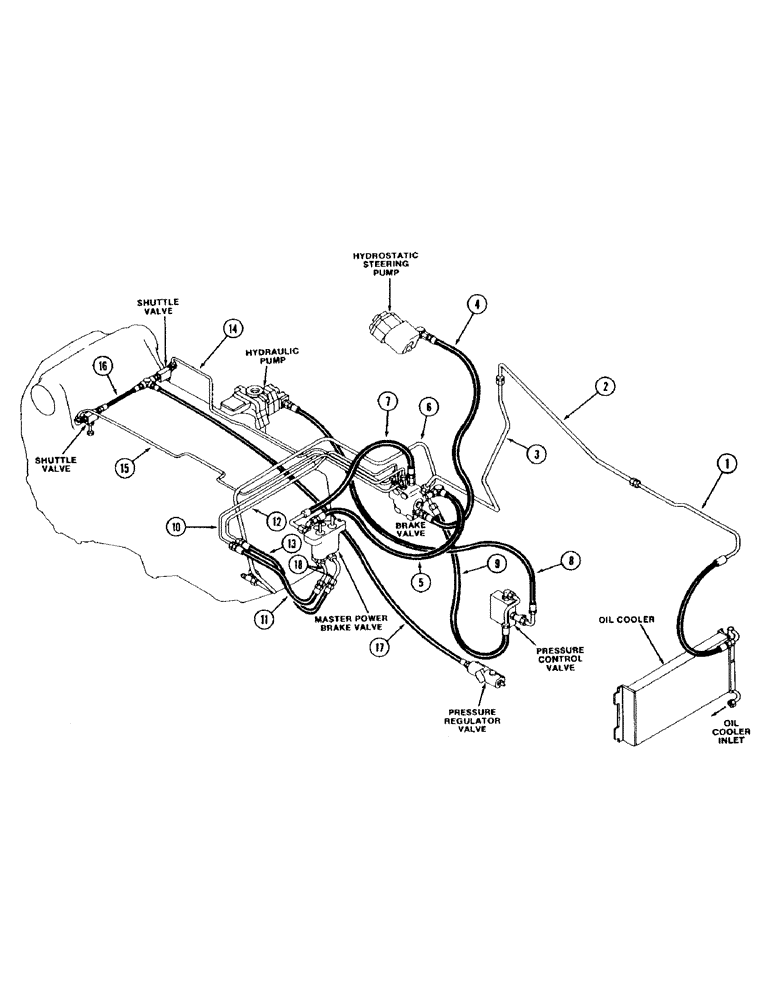

Запчасти Case IH 2294 (1-018) - PICTORIAL INDEX, BRAKE HYDRAULICS WITH HAND BRAKE (00) - PICTORIAL INDEX

1

Oil Cooler Outlet Tube, Page 5-127

1шт.

2

Oil Cooler Outlet Center Tube, Page 5-127

1шт.

3

Oil Cooler Outlet to Brake Valve Tube, Page 5-127

1шт.

4

Steering Pump to Brake Valve Hose, Page 5-123

1шт.

5

Master Power Brake Valve Inlet Hose, Page 7-287

1шт.

6

Oil Cooler Return Tube, Page 8-315

1шт.

7

Master Power Brake Valve Drain Hose, Page 7-287

1шт.

8

Pressure Control Valve to Hydraulic Pump Hose, Page 7-299

1шт.

9

Pressure Control Valve to Brake Valve Hose, Page 7-299

1шт.

10

Right Front Brake Tube, Page 7-287

1шт.

11

Right Front Brake Hose, Page 7-287

1шт.

12

Left front Brake Tube, Page 7-287

1шт.

13

Left Front Brake Hose, Page 7-287

1шт.

14

Left Rear Brake Tube, Page 7-287

1шт.

15

Right Rear Brake Tube, Page 7-287

1шт.

16

Right to Left Corssover Brake Hose, Page 7-299

1шт.

17

Brakes to Pressure Regulator Valve, Page 7-299

1шт.

18

Front Brake Hose to Master Brake Valve Tube, Page 7-287

1шт.
