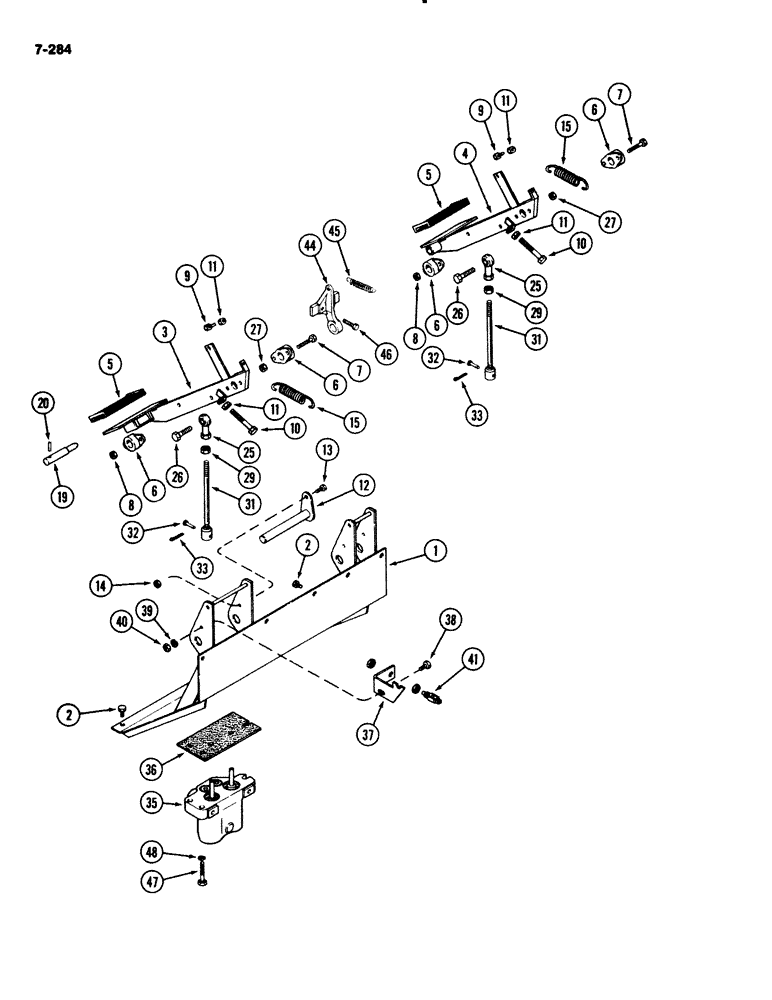

Запчасти Case IH 2294 (7-284) - BRAKE PEDALS AND VALVE (07) - BRAKES

1

A143559

BRACKET

COVER - brake and clutch

1шт.

2

187-1332

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 5/8"

BOLT - self tapping, 3/8 NC x 5/8 inch

8шт.

3

A164687

PEDAL

- brake, right

1шт.

4

A164688

PEDAL

- brake, left

1шт.

5

F9197

PAD

TREAD - nonskid, pedal

2шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal

4шт.

7

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

8

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

4шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

10

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

(Lower stop) Hex, 5/16"-18 x 2 3/4", G5

2шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

12

A59452

SHAFT

- pedal pivot

1шт.

13

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

8шт.

15

A160874

SPRING

- pedal return

2шт.

19

A164694

PIN

- interlock pedal

1шт.

20

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

1шт.

25

A32398

BALL JOINT

ROD END - female, 3/8 inch

2шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

29

129-123

NUT,3/8"-24, G5

4шт.

31

A160653

ROD

ASSEMBLY - brake

2шт.

32

A67313

PIN

- clevis, brake connector

2шт.

33

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - brake (See Figure 7-292)

1шт.

36

A163161

GASKET

- valve to cab platform

1шт.

37

A169537

BRACKET

- differential lock switch

1шт.

38

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

39

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

1шт.

41

REF

INSTRUCTION

SWITCH - differential lock (See Figure 4-060)

1шт.

44

A169728

LEVER

- differential lock return

1шт.

45

A164415

SPRING

- differential lock lever return

1шт.

46

A67294

BOLT

- switch adjusting

1шт.

47

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

48

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - internal/external lock, 3/8 inch (Order 193-72)

3шт.
