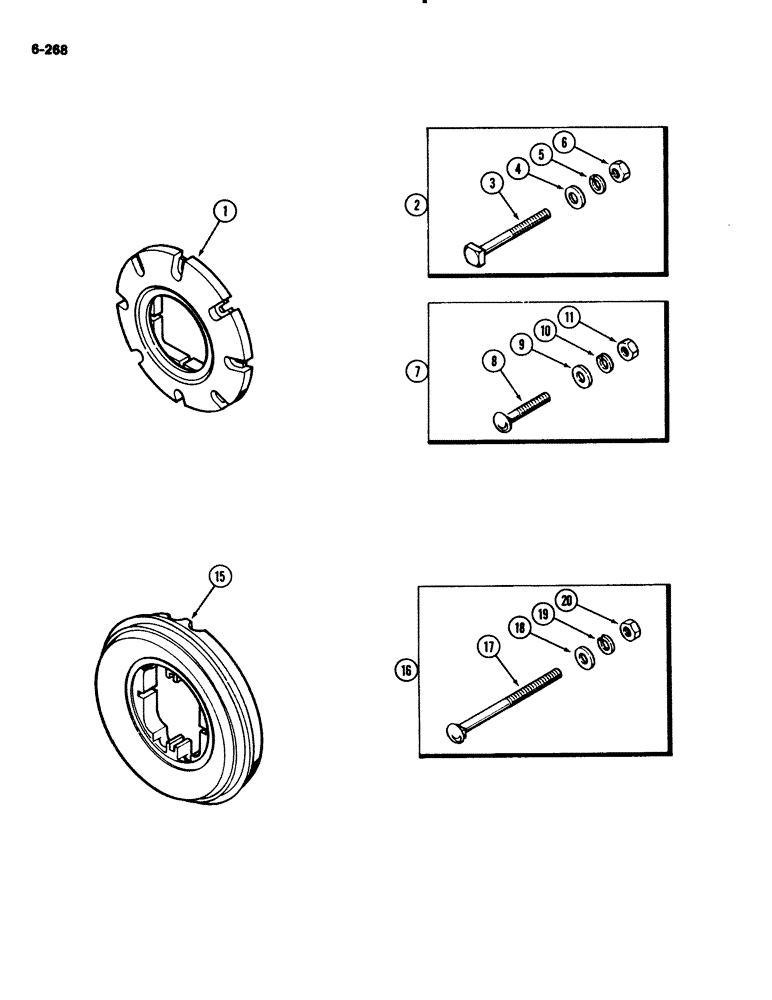

Запчасти Case IH 2294 (6-268) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33178

WEIGHT

- outside of wheel, 140 lb (63.5 kg) (Machinery Item)

1шт.

2

A67485

PACKAGE - hardware, first outside weight (Set of 2) (Machinery Item), Includes: Ref. 3 - 6

1шт.

3

117-509

BOLT,Sq Hd, 5/8" - 11 x 6-1/4", Gr 5

- square head, 5/8 NC x 6-1/4 inch

8шт.

4

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch (17 x 44 x 4 mm)

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

129-107

NUT,5/8"-11, G5

8шт.

7

A62577

PACKAGE

- hardware, each add on weight (Set of 2) (Machinery Item), Includes: Ref. 8 - 11

1шт.

8

111-641

CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G5

BOLT - round head square neck, 5/8 NC x 4 inch

8шт.

9

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch (17 x 44 x 4 mm)

8шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

129-107

NUT,5/8"-11, G5

8шт.

15

A34797

WEIGHT - inside of wheel, 400 lb (181.44 kg) (Machinery Item)

1шт.

16

A67487

PACKAGE - hardware, inside weight (Set of 2) (Machinery Item), Includes: Ref. 17 - 20

1шт.

17

111-637

CARRIAGE BOLT,Short NK, 5/8 -11 x 9", G5

BOLT - round head square neck, 5/8 x 9 inch

8шт.

18

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch (17 x 44 x 4 mm)

8шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

129-107

NUT,5/8"-11, G5

8шт.
