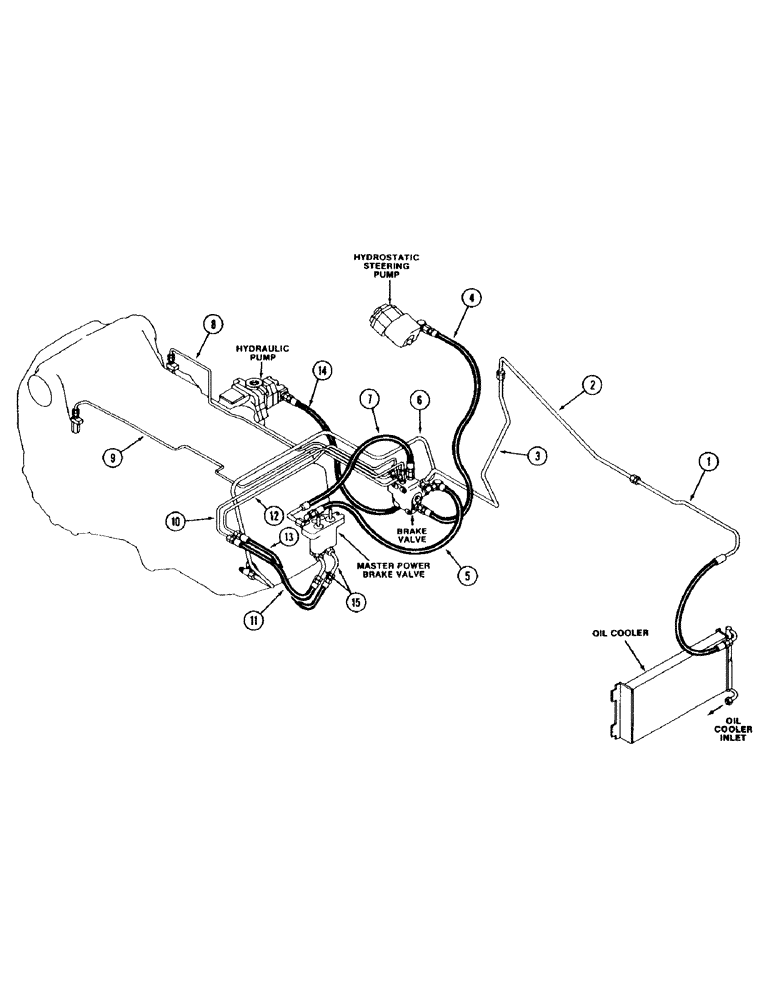

Запчасти Case IH 2294 (1-016) - PICTORIAL INDEX, BRAKE HYDRAULICS WITHOUT HAND BRAKE (00) - PICTORIAL INDEX

1

Oil Cooler Outlet Tube, Page 5-127

1шт.

2

Oil Cooler Outlet center Tube, Page 5-127

1шт.

3

Oil Cooler Outlet to Brake Valve Tube, Page 5-127

1шт.

4

Steering Pump to Brake Valve Hose, Page 5-123

1шт.

5

Master Power Brake Valve Inlet Hose, Page 7-287

1шт.

6

Oil Cooler Return Tube, Page 8-315

1шт.

7

Master Power Brake Valve Drain Hose, Page 7-287

1шт.

8

Left Rear Brakw Tube, Page 7-287

1шт.

9

Right Rear Brake Tube, Page 7-287

1шт.

10

Right Front Brake Tube, Page 7-287

1шт.

11

Right Front Brake Hose, Page 7-287

1шт.

12

Left Front Brake Tube, Page 7-287

1шт.

13

Left Front Brake Hoe, Page 7-287

1шт.

14

Hydraulic Pump to Brake Valve Hose, Page 7-287

1шт.

15

Front Brake Hose to Master Brake Valve tube, Page 7-287

1шт.
