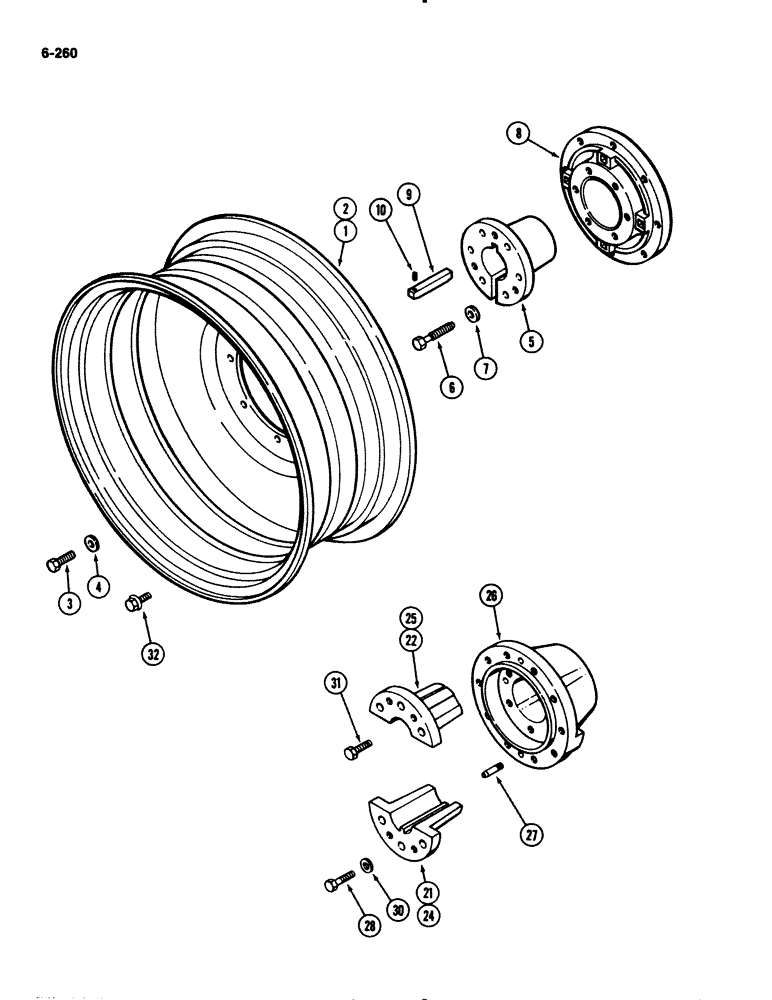

Запчасти Case IH 2294 (6-260) - STEEL DUAL REAR WHEELS, WITH 38 INCH (965 MM) RIMS (06) - POWER TRAIN

1

A145459

WHEEL

- steel (for 18.4 x 38 tire)

2шт.

2

A145460

WHEEL

- steel (for 20.8 x 38 tire)

2шт.

2

A160414

WHEEL

- steel (for 18.4 x 42 tire)

2шт.

3

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Wheel Hex, 3/4"-10 x 2", G8

16шт.

4

D31328

WASHER

- bolt, 1-5/8 inch (41 mm)

16шт.

5

A59792

HUB

BUSHING - hub (3-1/2 inch diameter axle)

2шт.

5

A63805

BUSHING

- hub (3-7/8 inch diameter axle)

2шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

7

D31328

WASHER

- bolt, 1-5/8 inch (41 mm)

16шт.

8

A145321

HUB CAP

HUB - universal (3-1/2 inch diameter axle)

2шт.

8

A145322

HUB

- universal (3-7/8 inch diameter axle)

2шт.

9

A34890

BUCKET TOOTH KEY

KEY - axle shaft (3-1/2 inch diameter axle)

2шт.

9

A63219

KEY

- axle shaft (3-7/8 inch diameter axle)

2шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

A67643

PACKAGE

HUB KIT - dual wheel (10-Bolt Wheels), for 3-1/2 inch OD axle (Machinery Item) (Includes Ref 26 through 32), Includes: Ref. 21 and 22

1шт.

21

A180918

BUSHING

- hub, 10 bolt wheels

2шт.

22

A180917

BUSHING

- hub, keyed

2шт.

A67642

HUB KIT - dual wheel (10-Bolt Wheels), for 3-7/8 inch OD axle (Machinery Item), Includes: Ref. 24 - 32

1шт.

24

A180920

BUSHING

- hub, 10 bolt wheels

2шт.

25

A180919

BUSHING

- hub, keyed, 10 bolt wheels

2шт.

26

A180916

HUB

- wheel, 10 bolt

2шт.

27

A181315

GUIDE PIN

PIN - guide, tapered (If equipped), 10 bolt wheels

2шт.

28

113-837

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

- hex, 7/8 NC x 3-1/4 inch, 10 bolt wheels

12шт.

30

192-69

LOCK WASHER,7/8"

10 bolt wheels 7/8"

12шт.

31

113-838

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

(Hub jack bolt), 10 bolt wheels Hex, 7/8"-9 x 2 1/2", G8

4шт.

32

121-243

BOLT,Hex Flg, 7/8"-9 x 1 1/2", G8

- hex flanged, 7/8 NC x 1-1/2 inch, 10 bolt wheels

20шт.
