Запчасти Case IH 2294 (6-254) - REAR WHEELS, WITH 38 INCH (965 MM) RIMS (06) - POWER TRAIN

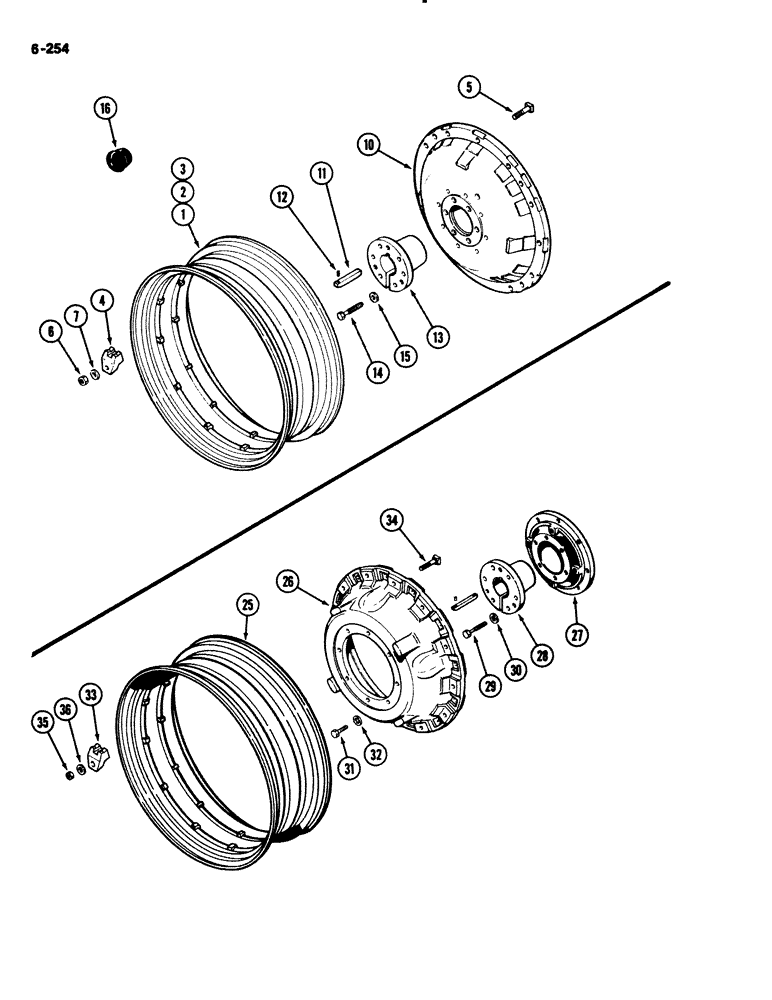

Схема запчастей Case IH 2294 - (6-254) - REAR WHEELS, WITH 38 INCH (965 MM) RIMS (06) - POWER TRAIN
25
31
29
2
5
15
34
1
33
3
7
14
36
35
27
16
4
26
28
10
6
12
30
13
11
32

Артикул

Название

Примечание

Количество

1

A33223

RIM

- wheel (for 16.9 x 38 tire)

2шт.

2

A160971

RIM

- wheel (for 18.4 x 38 tire)

2шт.

3

A160972

RIM

- wheel (for 20.8 x 38 tire)

2шт.

4

A57654

CLAMP

- wheel rim

16шт.

5

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

16шт.

6

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy hex, 3/4 inch NC

16шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

16шт.

10

A149777

WHEEL

- rear

2шт.

11

A34890

BUCKET TOOTH KEY

KEY - axle shaft

2шт.

12

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

13

A145896

BUSHING

- wheel hub

2шт.

14

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to wheel hub

12шт.

15

D31328

WASHER

- bolt, 1-5/8 inch (41 mm)

12шт.

16

A145052

PLUG

- valve opening in rim

1шт.

25

A160971

RIM

- rear wheel, universal cast (Used with 18.4 x 38 tire)

2шт.

25

A160972

RIM

- rear wheel, universal cast (Used with 20.8 x 38 tire)

2шт.

26

A145464

WHEEL

- rear, universal cast

2шт.

27

A145321

HUB CAP

HUB - universal, cast

2шт.

28

A59792

HUB

BUSHING - rear wheel hub, universal cast

2шт.

29

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch special, universal cast

12шт.

30

D31328

WASHER

- hub bolt, universal cast

12шт.

31

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, universal cast

16шт.

32

D31328

WASHER

- wheel bolt, universal cast

16шт.

33

A57654

CLAMP

- double ramp, rim to wheel, universal cast

24шт.

34

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, universal cast

24шт.

35

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- hex, 3/4 inch NC, universal cast

24шт.

36

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut, universal cast

24шт.

Выбрано товаров: 27
