Запчасти Case IH 2294 (6-246) - REAR WHEELS, WITH 30 INCH (762 MM) RIMS (06) - POWER TRAIN

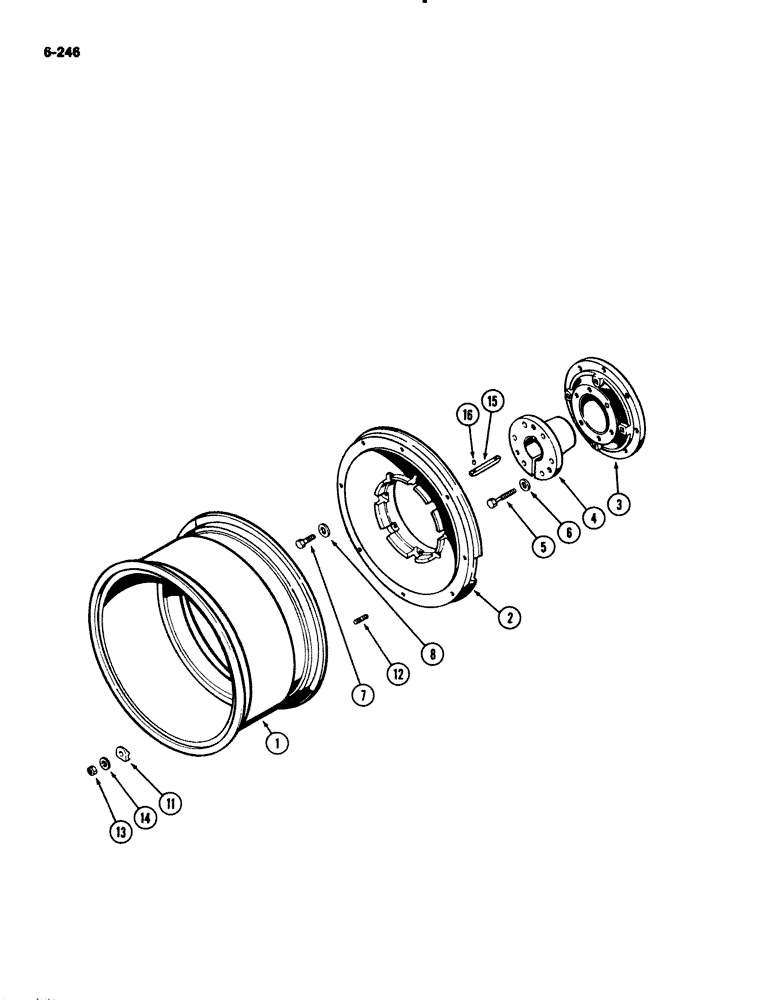

Схема запчастей Case IH 2294 - (6-246) - REAR WHEELS, WITH 30 INCH (762 MM) RIMS (06) - POWER TRAIN
3
6
13
2
5
16
1
8
11
7
4
12
15
14

Артикул

Название

Примечание

Количество

1

A33176

RIM

- wheel (for 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- rear, universal hub

2шт.

3

A59791

HUB

- universal

2шт.

4

A59792

HUB

BUSHING - rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- hardened

12шт.

7

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

16шт.

8

A64303

WASHER

- hardened

24шт.

11

A166501

CLAMP

-, Serial Range: rim-wheel

12шт.

12

A60047

STUD

- 5/8 NC x 2-7/16 inch

12шт.

13

A27183

NUT

- hex, special, 5/8 inch NC

12шт.

14

A64303

WASHER

- hardened

16шт.

15

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: bushing-axle

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

Выбрано товаров: 14
