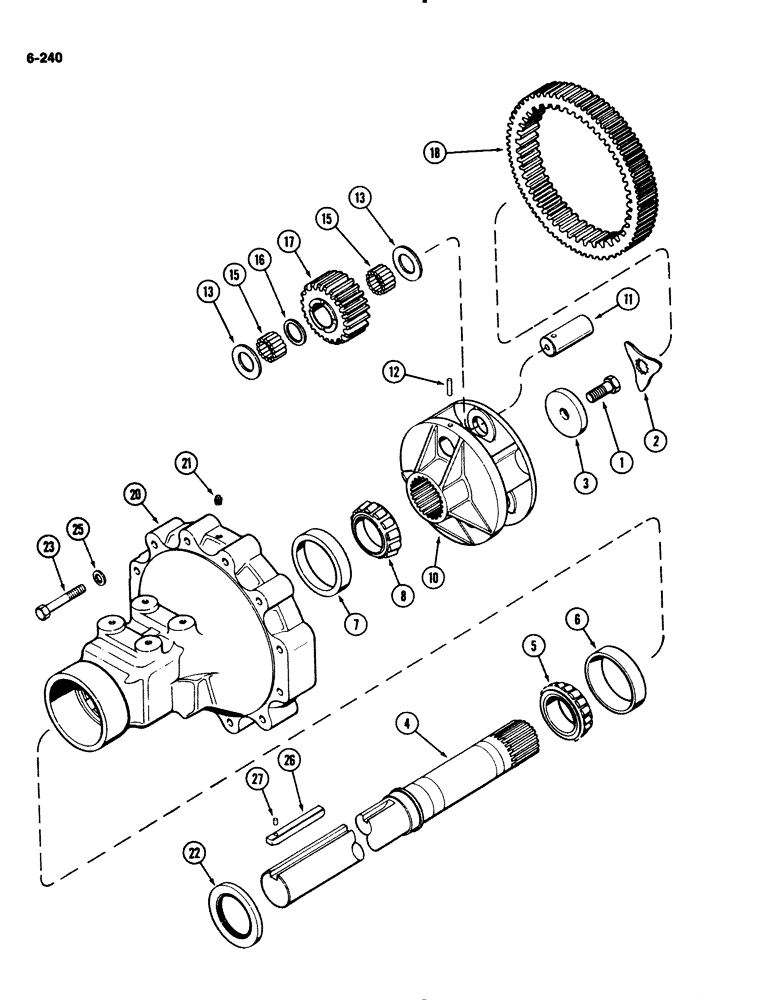

Запчасти Case IH 2294 (6-240) - REAR AXLE, HOUSING & PLANETARY GEARS, 96 INCH LONG (2438MM) 3-1/2 INCH (89MM) DIAMETER (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A151843

SHAFT

- rear axle

2шт.

5

A34339

BEARING

CONE - bearing, outer 3-1/4 inch ID (83 mm)

2шт.

6

A50324

BEARING CUP

CUP - bearing, outer 5-1/4 inch OD (133 mm)

2шт.

7

A67331

CUP

- bearing, inner 5-7/64 inch OD (130 mm)

2шт.

8

A67332

ROLLER BEARING,3.149" ID x 1.3386"

CONE - bearing, inner 3-9/64 inch (80 mm)

2шт.

10

A148732

CARRIER

- planetary gear

2шт.

11

A168244

PIN,41.94mm OD x 138.2mm L

- planetary gear (Replaces A151449)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A67116

WASHER

- planetary pin roller (Replaces A63228)

12шт.

15

A47252

ROLLER BEARING

BEARING KIT - roller, planetary gear (Pack of 57)

4шт.

16

A67117

SPACER

- roller bearing separator (Replaces A63227)

6шт.

17

A168175

GEAR

- planetary, rear axle (Replaces A168174)

6шт.

18

A151934

GEAR

- planetary, ring (Replaces A140811)

2шт.

20

A168155

HOUSING

- rear axle (Replaces A179633)

2шт.

21

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

22

A155226

OIL SEAL

- oil, rear axle

2шт.

23

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- 1-1/16 inch (27 mm)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - rear wheel to axle shaft, 6 inch long (152 mm)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
