Запчасти Case IH 2294 (6-236) - DIFFERENTIAL ASSEMBLY, SHAFT AND BRAKE (06) - POWER TRAIN

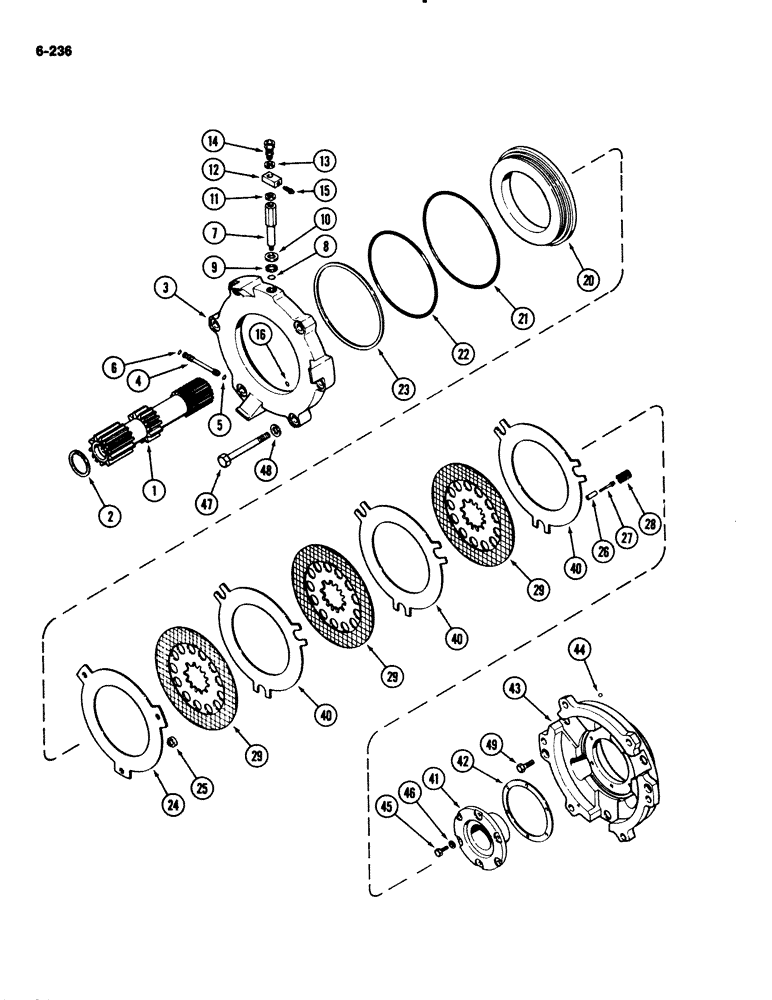

Схема запчастей Case IH 2294 - (6-236) - DIFFERENTIAL ASSEMBLY, SHAFT AND BRAKE (06) - POWER TRAIN
21
42
1
26
11
2
29
6
20
8
25
23
40
5
24
48
7
15
12
40
27
9
4
29
43
45
46
3
40
13
22
29
44
16
14
49
28
41
47
10

Артикул

Название

Примечание

Количество

1

A168154

SHAFT

- brake and sun gear

2шт.

Transmission serial no. 16264554 and after.

1шт.

1

A168167

SHAFT

- brake and sun gear

2шт.

Prior to transmission serial no. 16264554.

1шт.

2

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - snap, sun gear shaft

2шт.

3

A148728

CYLINDER

- brake support, right and left

2шт.

4

A150240

TUBE

- differential lock oil

1шт.

5

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- 1/2 inch (13 mm) (Order N8539)

1шт.

6

A8613

O-RING,0.426" ID x 0.566" OD

- 9/16 inch (14 mm) (Order N8538)

1шт.

7

A66395

FITTING

- hydraulic brake

2шт.

8

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64 inch (6 x 9 x 2 mm)

2шт.

9

A64071

GROMMET

- brake fitting, 11/16 inch ID (18 mm)

2шт.

10

195-2201

WASHER,0.69" ID x 1.12" OD x 0.07" Thk

- flat, 5/8 x 1-1/8 x 1/16 inch (16 x 29 x 2 mm)

2шт.

11

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, lower

2шт.

12

A64072

FITTING

- brake

2шт.

13

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, upper

2шт.

14

A64073

HOLLOW SCREW

- connector, brake

2шт.

15

A41491

BLEEDER,1/4" - 28 x 23.37mm

- brake

2шт.

16

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

- port, 7/16 inch (11 mm)

1шт.

20

A144692

PISTON

- brake

2шт.

21

A144693

O-RING,0.21" Thk x 8.97" ID, -373, Cl 6, 90 Duro

- 9-11/64 inch (233 mm)

2шт.

22

A140826

O-RING,7.975" ID x 0.21"

- 8-3/16 inch (208 mm)

2шт.

23

A144694

RING

- seal, 8-5/64 inch (205 mm)

2шт.

24

A67337

PLATE

- piston return

2шт.

25

A67362

RETAINER

- brake adjuster

6шт.

26

A154607

PIN

- roll, 7/16 x 1 inch

6шт.

27

A156626

LOCK BOLT,1/4" - 20 x 1.50, Gr 8

SCREW - brake adjuster

6шт.

28

A151927

SPRING

- brake adjuster, 1-13/32 inch free length (29 mm)

6шт.

29

A151946

PLATE

- brake, sintered

6шт.

40

A67336

PLATE

- brake, steel

6шт.

41

A142698

RETAINER

- bearing carrier

2шт.

42

A140819

SHIM,.003" Thk

Retainer (0.08 mm) .003" Thk

1шт.

42

A140820

SHIM,.007" Thk

Retainer (0.18 mm) .007" Thk

1шт.

42

A140821

SHIM

- retainer, 0.010 inch (0.25 mm)

1шт.

42

A155160

SHIM

- retainer, 0.020 inch (0.508 mm)

1шт.

43

A142727

HOUSING

- differential brake, left (Right shown)

1шт.

43

A152150

HOUSING

ASSEMBLY - differential brake, right

1шт.

44

211-9

BALL,5/16" Dia

- 5/16 inch diameter (8 mm)

1шт.

45

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

12шт.

46

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

12шт.

47

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch (Grade 8)

11шт.

48

A64303

WASHER

- hardened

11шт.

49

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

Выбрано товаров: 43
