Запчасти Case IH 2294 (6-224) - TRANSFER GEARBOX, MFD TRACTORS, PRIOR TO TRANSMISSION SERIAL NUMBER 16239354 (06) - POWER TRAIN

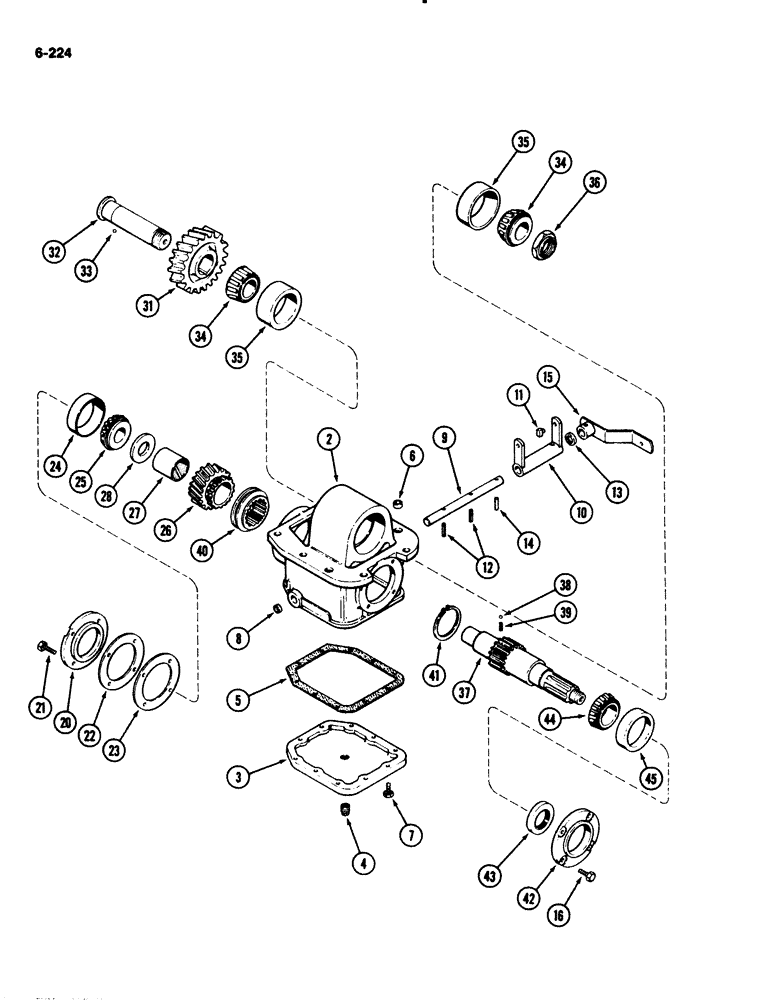

Схема запчастей Case IH 2294 - (6-224) - TRANSFER GEARBOX, MFD TRACTORS, PRIOR TO TRANSMISSION SERIAL NUMBER 16239354 (06) - POWER TRAIN
37
12
32
14
35
41
16
6
45
34
8
44
20
10
2
27
31
22
21
40
3
9
36
26
13
4
11
23
43
33
25
5
34
26
39
38
42
7
35
15
24

Артикул

Название

Примечание

Количество

A156674

GEARBOX

ASSEMBLY - transfer (Carraro No. 113040) (Order A179665), Includes: Ref. 2 - 45

1шт.

2

A156355

HOUSING

- transfer gearbox (Carraro No. 112824) (Order A168844)

1шт.

3

A156588

COVER

- gearbox, bottom (Carraro No. 112828)

1шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro No. 92270) M22 x 1.5

1шт.

5

A157216

GASKET

- cover (Carraro No. 110718)

1шт.

6

A156567

PIN

RING - dowel (Carraro No. 97191)

2шт.

7

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 1 x 20 mm

10шт.

8

A157155

PLUG

- rail

1шт.

9

A156582

RAIL

- shift fork (Carraro No. 110704)

1шт.

10

A156580

FORK

- shift (Carraro No. 109971)

1шт.

11

A156581

PAD

- shift fork (Carraro No. 72403)

2шт.

12

138-2053

PIN,1/4" x 1 1/4", Coiled

Rail 1/4" x 1 1/4", Coiled

2шт.

13

A157101

OIL SEAL

- rail oil

1шт.

14

A157229

SPLIT PIN/SAFETY PIN

PIN - lever retaining groove

1шт.

15

A156583

LEVER

- shift external (Carraro No. 98901)

1шт.

16

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 mm

4шт.

20

A156584

COVER

- gearbox, rear (Carraro No. 112830)

1шт.

21

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 mm

4шт.

22

A156587

SHIM

- rear cover, 0.002 inch (0.05 mm) (Carraro No. 113018)

1шт.

23

A156586

SHIM

- rear cover 0.005 inch (0.13 mm) (Carraro No. 113017)

1шт.

24

A138433

BEARING CUP

CUP - bearing

1шт.

25

A156596

ROLLER BEARING,1.625" ID x 1.1563"

CONE - output shaft, rear

1шт.

26

A156573

GEAR

ASSEMBLY - output, 22 teeth (Carraro No. 113005) (Order A168848), Includes: Ref. 27

1шт.

27

A48157

BUSHING

- output gear (Carraro No. 109979)

1шт.

28

A156576

WASHER

- thrust (Carraro No.113006)

1шт.

31

A157333

GEAR

- idler, 32 teeth

1шт.

32

A157332

SHAFT

- idler

1шт.

33

211-7

BALL,1/4" Dia

- gear retaining (6 mm) 1/4" Dia

1шт.

34

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE - idler shaft

2шт.

35

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

CUP - idler shaft

2шт.

36

A156571

NUT

- bearing adjusting (Carraro No. 113003)

1шт.

37

A156572

SHAFT

- output (Carraro No. 113004)

1шт.

38

211-7

BALL,1/4" Dia

- detent (6 mm) 1/4" Dia

3шт.

39

A156579

SPRING

- detent (Carraro No. 97199)

3шт.

40

A156578

COLLAR

- shift (Carraro No. 109962)

1шт.

41

A157130

RING

- retaining snap

1шт.

42

A156585

COVER

- gearbox, front

1шт.

43

A156577

OIL SEAL

- output shaft oil

1шт.

44

S113921

TAPERED BEARING

CONE - output shaft, front

1шт.

45

A138433

BEARING CUP

CUP - bearing

1шт.

Выбрано товаров: 40
