Запчасти Case IH 2294 (6-222) - POWER TRAIN, MFD TRACTORS, ZF AXLE (06) - POWER TRAIN

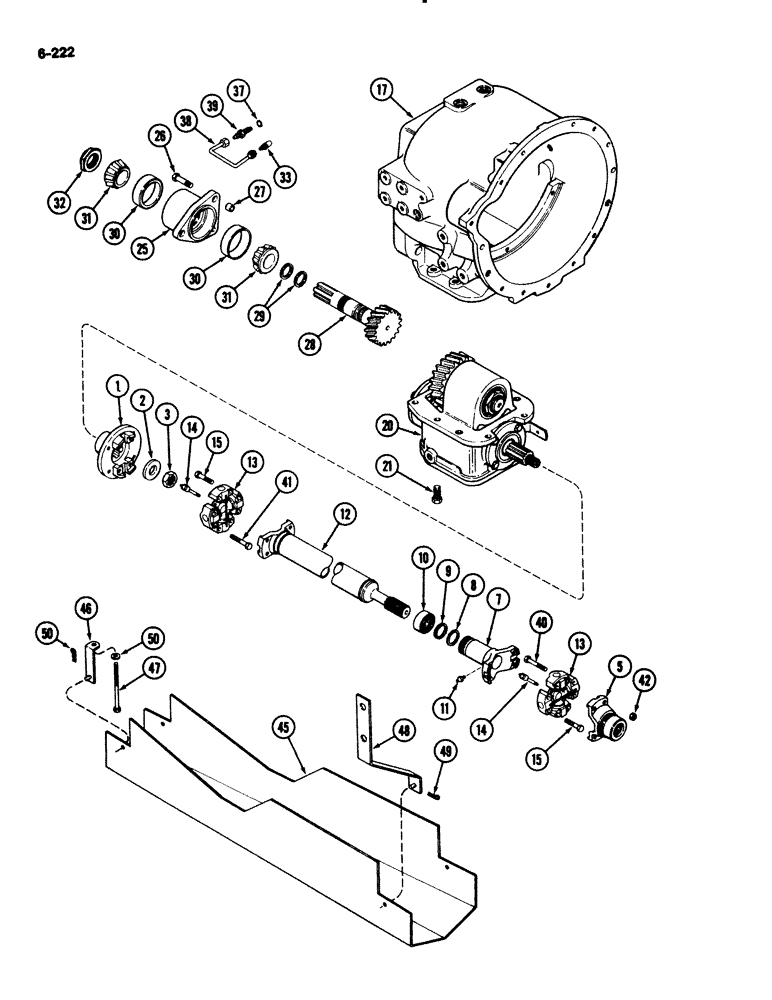

Схема запчастей Case IH 2294 - (6-222) - POWER TRAIN, MFD TRACTORS, ZF AXLE (06) - POWER TRAIN
49
14
3
14
9
41
13
45
17
7
15
31
48
2
47
12
27
38
32
42
8
39
29
40
33
13
50
30
31
20
1
26
11
25
15
30
46
5
10
28
21
50
37

Артикул

Название

Примечание

Количество

1

A156593

YOKE

- brake output shaft

1шт.

2

A75138

WASHER

- yoke retaining

1шт.

3

131-584

LOCK NUT,1 1/8"-12

NUT - hex lock, 1-1/8 inch NF

1шт.

5

A52072

FLANGE

YOKE - front axle

1шт.

A168482

SHAFT

ASSEMBLY - drive, Includes: Ref. 7 - 15

1шт.

7

A47519

YOKE

ASSEMBLY - slip, Includes: Ref. 8 - 11

1шт.

8

A47521

WASHER

- seal

1шт.

9

A18390

WASHER

- split felt

1шт.

10

A18388

CAP

- seal

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

12

A48921

TUBE

- shaft

1шт.

13

A45595

SPIDER ,U-JOINT

BEARING ASSEMBLY - drive shaft, Includes: Ref. 14

2шт.

14

A48953

FITTING

- lube, straight 1-5/8 x 1/4 inch PT

1шт.

15

A17298

BOLT,Hex, 3/8" x 1 11/16"

-

8шт.

17

REF

INSTRUCTION

HOUSING - clutch (See Figure 6-180)

1шт.

20

REF

INSTRUCTION

GEARBOX - transfer (See Figure 6-228)

1шт.

21

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

8шт.

25

A168057

HOUSING

- input shaft support

1шт.

26

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8 (Order 826-14060 bolt and 196-20 washer)

3шт.

27

A156567

PIN

RING - dowel

2шт.

28

A168846

SHAFT

- input

1шт.

29

A156564

RING

- seal

2шт.

30

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - input shaft

2шт.

31

D71240

ROLLER BEARING,1.75" ID x 3.5" OD x 1.1875"

CONE - input shaft

2шт.

32

A156565

NUT

- adjusting

1шт.

33

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 1/4 tube 7/16-20 thread x 1/8 inch PT

1шт.

37

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 1 mm)

1шт.

38

A157297

TUBE

- countershaft lube, internal

1шт.

39

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight bulkhead, 1/4 tube 7/16-20 inch thread

1шт.

40

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- hex, 3/8 NF x 2 inch, Grade 8

4шт.

41

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, Grade 8

4шт.

42

129-524

NUT,3/8"-24, G8

4шт.

45

A181217

SHIELD

- drive shaft

1шт.

46

A180811

SUPPORT

- shield, rear

2шт.

47

13-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

2шт.

48

A180813

SUPPORT

- shield, front

2шт.

49

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - internal, hair type

4шт.

50

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

Выбрано товаров: 38
