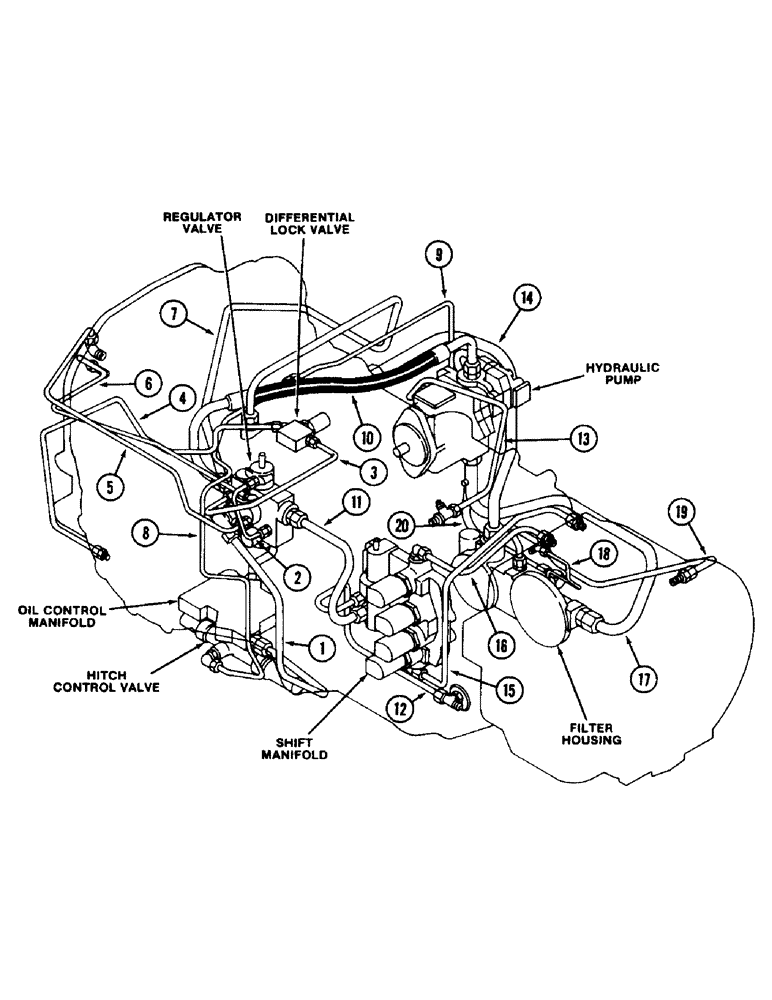

Запчасти Case IH 2294 (1-010) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Regulator Valve to Manifold Tube, Page 8-401

1шт.

2

PTO Brake Drain Tube, Page 8-313

1шт.

3

Regulator Valve to Different Lock Valve Tube, Page 7-297

1шт.

4

Differential Lock Valve to Transmission Tube, Page 7-297

1шт.

5

Regulator Valve PTO Clutch Tube, Page 8-313

1шт.

6

Regulator Valve to PTO Brake Tube, Page 8-313

1шт.

7

Manifold to Lift Cylinder Tube, Page 8-401

1шт.

8

Right Hitch Valve Pilot Tube, Page 8-319

1шт.

9

LEft Hitch Valve Pilot Tube, Page 8-319

1шт.

10

Pump to Regulator Valve Hose, Page 8-313

1шт.

11

Regulator Valve to Shift Manifold Supply Tube, Page 8-315

1шт.

12

Control Valve to Shift Manifold Tube, Page 8-315

1шт.

13

Hydraulic Pump Drain Tube, Page 8-319

1шт.

14

Transmission Charge Pump Tube, Page 8-323

1шт.

15

C1 Clutch Fill Tube, Page 315

1шт.

16

C4 Clutch Fill Tube, Page 8-315

1шт.

17

Filter Housing to Pump Suction Tube, Page 8-319

1шт.

18

Transmission Countershaft Lubrication Tube, Page 8-323

1шт.

19

C1 Clutch Lubrication Tube, Page 8-323

1шт.

20

Steering Suction Tube, Page 8-319

1шт.
