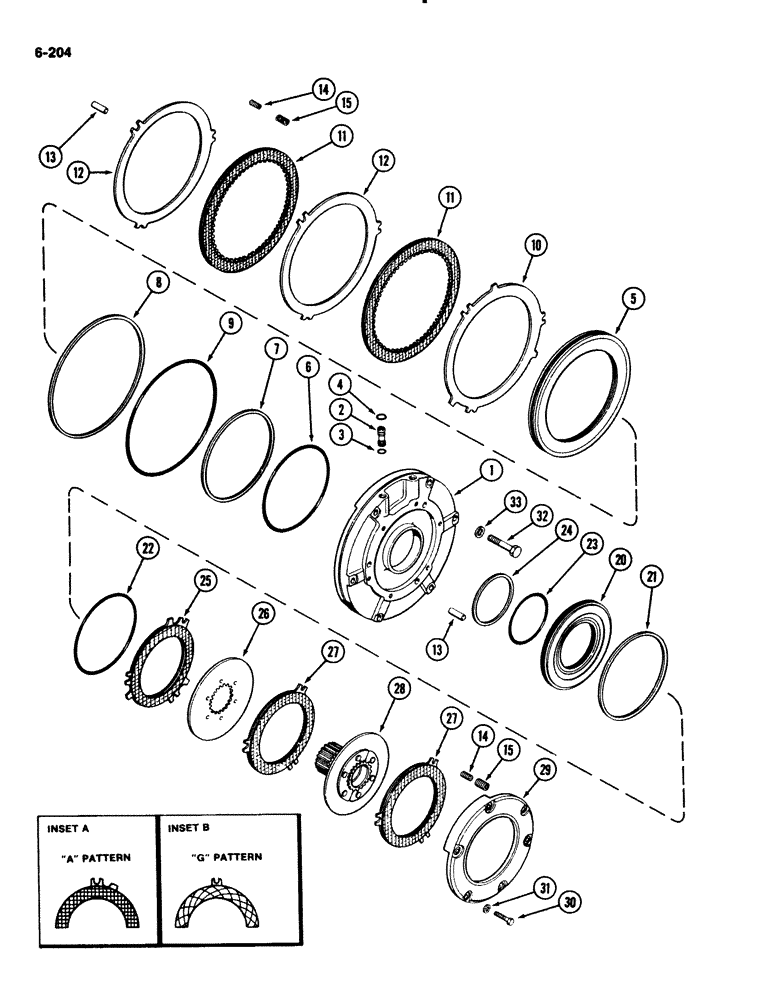

Запчасти Case IH 2294 (6-204) - POWER SHIFT TRANSMISSION, (C1) AND (C4) CLUTCHES (06) - POWER TRAIN

1

A142244

CARRIER

- piston, (C1) and (C4)

1шт.

2

A142241

TUBE

- oil, (C1) and (C4) clutch

2шт.

3

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 5/8 inch (16 mm) (Order G102845)

2шт.

4

A65918

O-RING,0.551" ID x 0.691" OD

- 11/16 inch (18 mm)

2шт.

5

A146671

PISTON

- (C4) clutch

1шт.

6

A150752

O-RING,9.206" ID x 0.107" OD

- internal seal, 9-5/32 inch ID (233 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

7

A146681

SEAL

- seal, internal, 8-31/32 inch ID (228 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146680

RING

- seal, internal, 12-9/16 inch OD (319 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150751

O-RING,12.09" ID x 0.107"

RING - internal seal, 12-1/16 inch O (306 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

10

A58056

PLATE

- steel, (C4) clutch, with tabs

1шт.

11

A67128

PLATE

- friction, (C4) clutch

2шт.

12

A75105

PLATE

- steel, (C4) clutch, without tabs

2шт.

13

A65555

PIN

- clutch reaction plate (C4), 1-37/64 inch long (40 mm)

6шт.

14

A142613

SPRING

- return (C4), 23/64 diameter x 1-1/4 inch free length (9 x 32 mm)

6шт.

15

A62606

SPRING

- return (C4), 9/16 diameter x 1-3/32 inch free length (14 x 28 mm)

6шт.

20

A146670

PISTON

- (C1) clutch

1шт.

21

A146682

RING

- seal, external, 8-9/32 inch OD (210 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

22

A150753

O-RING,7.84" ID x 0.107"

- external seal, 7-7/8 inch OD (200 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

23

A150754

O-RING,4.718" ID x 0.107"

- internal seal, 4-11/16 inch ID (119 mm)

1шт.

24

A146683

RING

- seal, external, 4-15/32 inch ID (114 mm)

1шт.

Part of Seal Kit, P/N A46286

1шт.

25

A168484

PLATE

- (C1) clutch with tabs ("G" type groove pattern, See Inset B)

1шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have the same groove pattern. Order A168484 and A168483 as a set only.

1шт.

25

A142361

PLATE

- (C1) clutch with tabs ("A" type grove pattern, See Inset A) (Order A168484)

1шт.

26

A152112

PLATE

- (C1) clutch, steel

1шт.

27

A168483

PLATE

- (C1) clutch, without tabs ("G" type groove pattern, See Inset B)

2шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have the same groove pattern. Order A168484 and A168483 as a set only.

1шт.

27

A142360

PLATE

- (C1) clutch, without tabs ("A" type groove pattern, See Inset A) (Order A168484)

2шт.

"A" and "G" groove patterns are not to be mixed. Ref. 25 and 27 must have the same groove pattern. Order A168484 and A168483 as a set only.

1шт.

28

A168203

PLATE

GEAR - sun reaction, (C1) clutch

1шт.

Transmission serial no. 16264554 and after.

1шт.

28

A152113

PINION

GEAR - sun reaction, (C1) clutch

1шт.

Prior to transmission serial no. 16264554.

1шт.

29

A142240

PLATE

- (C1) reaction

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- 3/4 inch (19 mm)

6шт.

32

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

5шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

33

A30061

WASHER

- carrier bolt

6шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 3, 6, 7, 8, 9, 21, 22, 23, 24

1шт.
