Запчасти Case IH 2294 (6-182) - HYDRAULIC MANIFOLD, ELECTRIC SHIFT (06) - POWER TRAIN

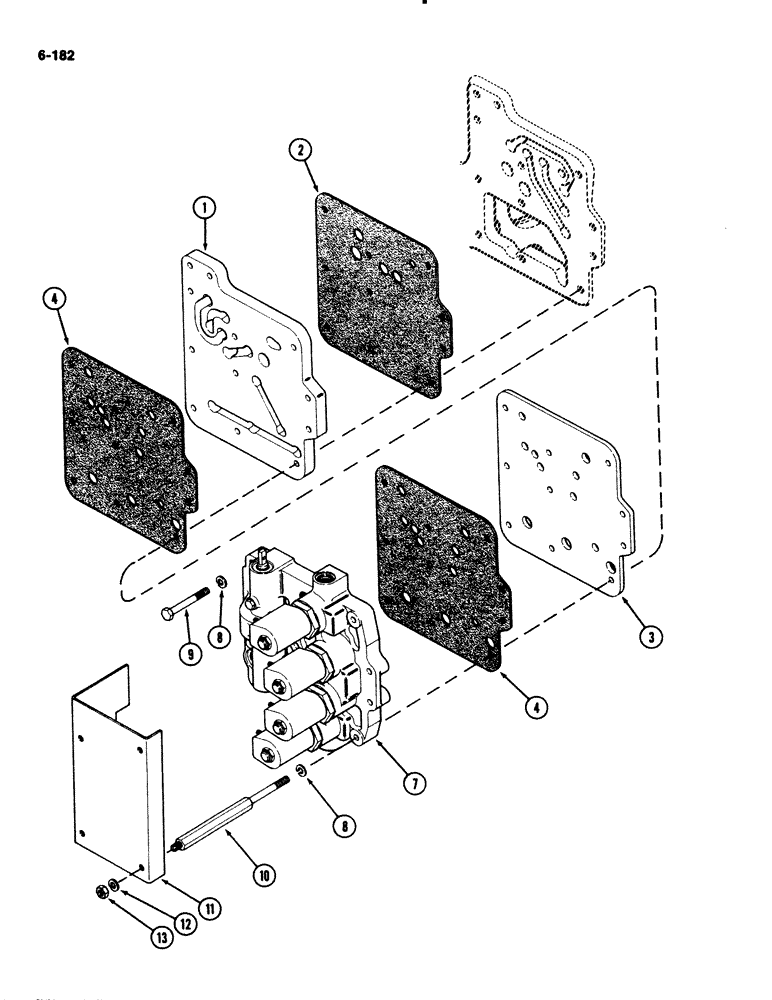

Схема запчастей Case IH 2294 - (6-182) - HYDRAULIC MANIFOLD, ELECTRIC SHIFT (06) - POWER TRAIN
13
12
2
9
6
1
3
4
4
8
7
11
10

Артикул

Название

Примечание

Количество

1

A158352

PLATE

- adaptor manifold

1шт.

2

A158536

MANIFOLD GASKET

- plate

1шт.

3

A158393

PLATE

- manifold

1шт.

4

A158394

MANIFOLD GASKET

- manifold mounting

2шт.

7

REF

INSTRUCTION

MANIFOLD ASSEMBLY - electric shift (See Figure 6-184)

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

9

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

10

A168326

STUD

- manifold cover

4шт.

11

A160836

COVER

- solenoid

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-104

NUT,7/16"-14, G5

- hex, 3/8 inch NC

4шт.

Выбрано товаров: 11
