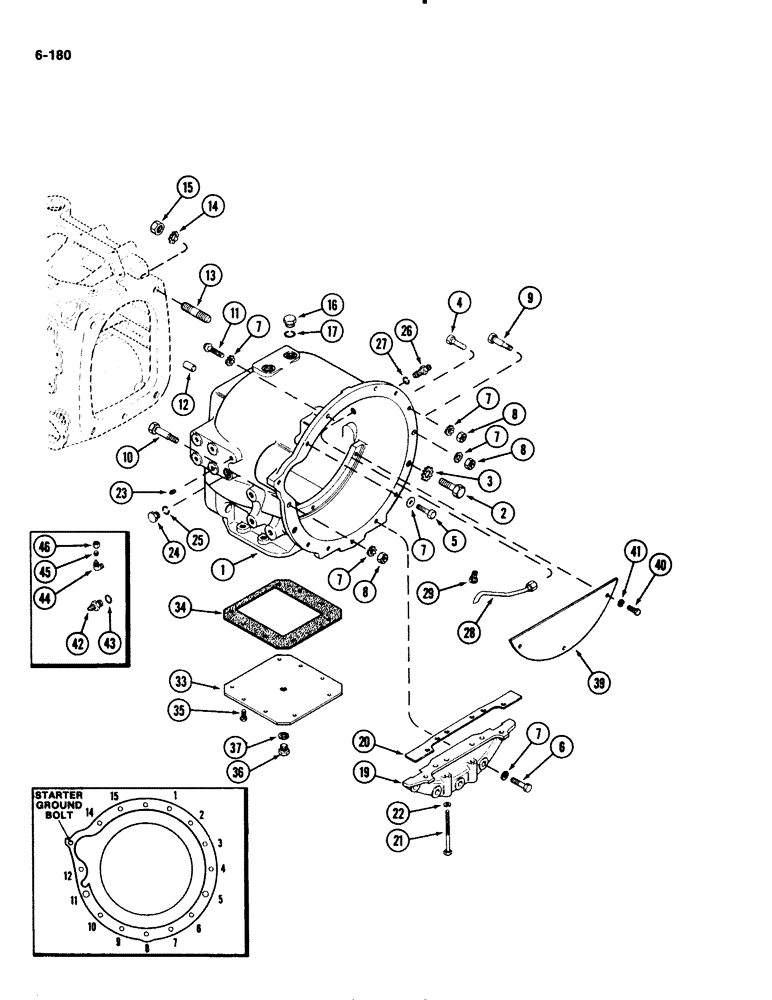

Запчасти Case IH 2294 (6-180) - POWER SHIFT TRANSMISSION, CLUTCH HOUSING (06) - POWER TRAIN

1

A179250

HOUSING

- clutch (MFD tractor)

1шт.

1

A179251

HOUSING - clutch (Order A179250 and Ref 33 through 37)

1шт.

2

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch (Grade 8) (Hole 5 and 11)

2шт.

3

A34651

LOCK WASHER

- external lock, 3/4 inch

2шт.

4

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch (Grade 8) (Hole 3)

1шт.

5

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch (Grade 8) (Hole 2 and 14)

2шт.

6

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- hex, 1/2 NC x 1-5/8 inch (Grade 8)(Hole 6, 7, 8, 9 and 10)

5шт.

7

A34650

LOCK WASHER

- external lock, 1/2 inch

13шт.

8

25-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2 inch NC

3шт.

9

A149765

STEP BOLT

BOLT - hex dowel, 1/2 NC x 2-21/32 inch (Hole 4)

1шт.

10

A149764

STEP BOLT

BOLT - hex dowel, 1/2 NC x 3-1/8 inch (Hole 12)

1шт.

11

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - ferry, 1/2 NC x 1-3/4 inch (Grade 8) (Hole 1 and 15)

3шт.

12

A28269

PIN

- dowel

2шт.

13

A151866

STUD

- 7/8 NF x 4 inch

4шт.

14

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - external lock, 7/8 inch

4шт.

15

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

4шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy - (C1) and (C4) pressure inlets, Includes: Ref. 17 Hex Hd, 1 1/16"-12 ORB

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 7/64 inch (19 x 23 x 3 mm)

1шт.

19

A144906

PLATE

- flywheel housing seal

1шт.

20

A152424

GASKET

KIT - plate

1шт.

21

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

221-11

PLUG,Sq Hd, 1/8"-27

- square head pipe, 1/8 inch (Used without air/oil seat)

1шт.

24

214389

PLUG,3/4" - 16 ORB

Assy (Used without air/oil seat), Includes Ref. 25 Hex Hd, 3/4"-16 ORB

1шт.

25

218-5346

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

- 55/64 x 1-3/32 x 7/64 inch (22 x 28 x 3 mm)

1шт.

26

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- bulkhead, 1/2 tube x 3/4-16 inch (lubrication tube)

1шт.

28

A168594

TUBE

- clutch lubrication

1шт.

29

49838

CLAMP

- lubrication tube

1шт.

33

A156591

COVER ASSY

COVER - clutch housing

1шт.

34

A156695

GASKET

- cover

1шт.

35

813-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, M14 x 35 mm

8шт.

36

A140222

PLUG

- drain

1шт.

37

A58608

GASKET

- drain plug

1шт.

39

A156784

BAFFLE

- flywheel

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

41

92-6

LOCK WASHER,3/8"

3шт.

42

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY - straight (Used with air/oil seat) 3/8 tube 9/16-18 x 1/2 tube x 3/4-16 inch thread, Includes: Ref. 43

1шт.

43

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 2 mm)

1шт.

44

222-2646

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

ASSEMBLY - 90 degree (Used with air/oil seat) 3/8 tube 17/32-24 thread x 1/8 inch PT, Includes: Ref. 45 and 46

1шт.

45

222-2611

SLEEVE

- 3/8 inch tube

1шт.

46

222-2601

NUT

NUT - 3/8 inch tube

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 5/64 inch (16 x 21 x 2 mm)

1шт.
