(5-176) - FRONT WHEEL, MFD TRACTORS, CARRARO AXLE

Запчасти Case IH 2294 (5-176) - FRONT WHEEL, MFD TRACTORS, CARRARO AXLE (05) - STEERING

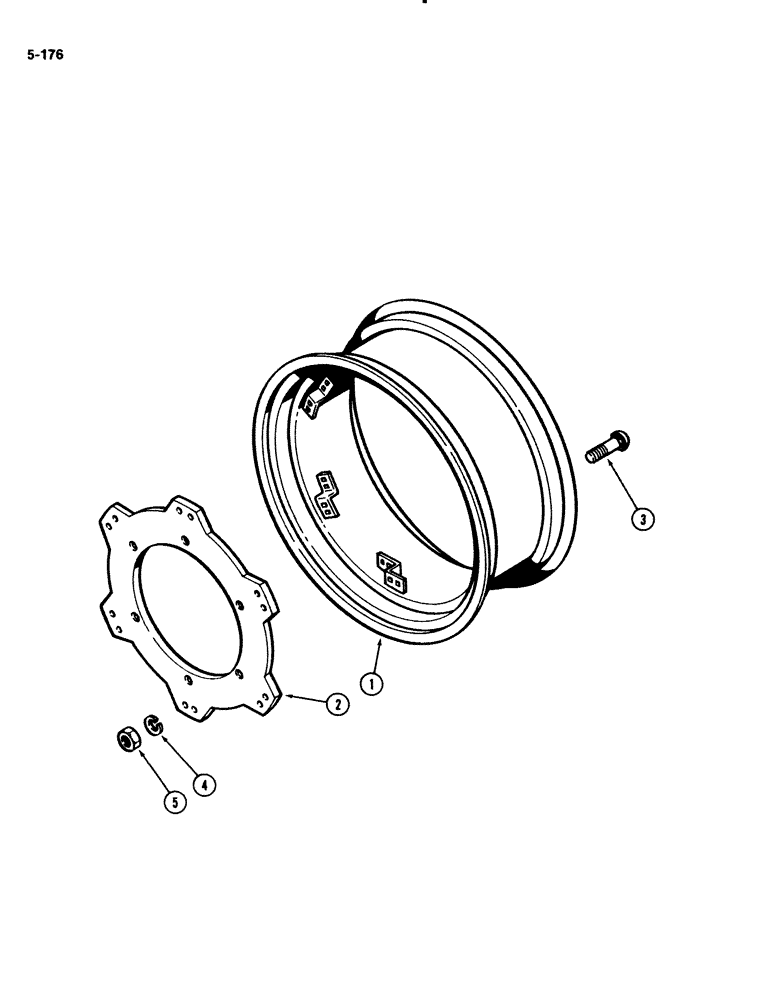

Схема запчастей Case IH 2294 - (5-176) - FRONT WHEEL, MFD TRACTORS, CARRARO AXLE (05) - STEERING
2
3
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A163092

RIM

- front wheel, for 13.6 and 14.9 x 28 tire (Carraro No. 87339)

2шт.

1

A163093

RIM

- front wheel, for 16.9 x 28 tire

2шт.

2

A156020

DISC

- wheel (Carraro No. 110359)

2шт.

3

K260259

BOLT

- disc to rim (Carraro No. 106200)

24шт.

4

892-1114

LOCK WASHER,M14

WASHER - lock, 14 mm

24шт.

5

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.5

24шт.
