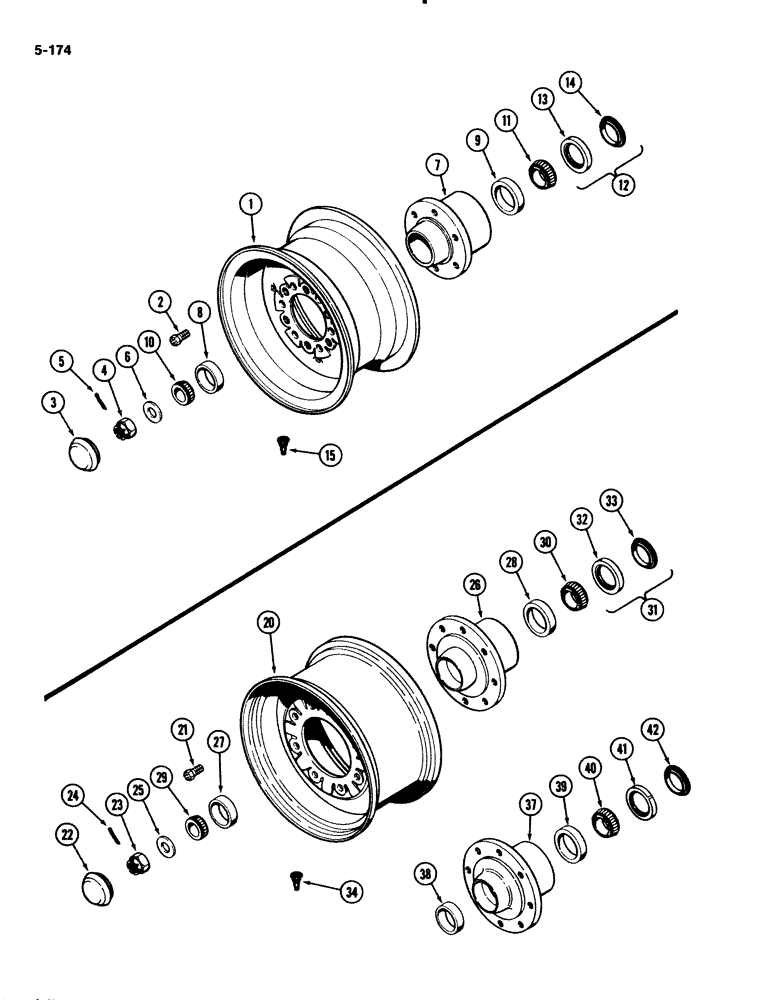

Запчасти Case IH 2294 (5-174) - FRONT WHEEL AND HUB (05) - STEERING

1

A60405

WHEEL

- front, 6-Bolt Hub (for 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle, hex slotted, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

7

A57336

HUB

ASSEMBLY - wheel, Includes: Ref. 8 and 9

2шт.

8

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 mm)

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 mm)

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer 1-3/8 inch ID (35 mm)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm)

2шт.

12

A57250

OIL SEAL

ASSEMBLY - oil, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference No. A57247)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference No. A57246)

1шт.

15

A38261

VALVE

- tubeless tire

2шт.

20

A62132

WHEEL

- front, 8-Bolt Hub (for 14L x 16.1 tire)

2шт.

20

A61570

WHEEL

- front, 8-Bolt Hub (for 11.00 x 16 tire)

2шт.

21

A62567

WHEEL BOLT

BOLT - wheel to hub, hex special

16шт.

22

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

23

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - spindle, hex slotted, 1-1/8 inch NF

2шт.

24

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

25

A62919

WASHER

- spindle nut

2шт.

26

A51157

HUB

- wheel, for standard wheel base

2шт.

27

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 mm)

2шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 mm)

2шт.

29

G15215

ROLLER BEARING

CONE - bearing, outer, 1-3/8 inch ID (35 mm)

2шт.

30

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 mm)

2шт.

31

A57250

OIL SEAL

ASSEMBLY - oil, Includes: Ref. 32 and 33

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference No. A57247)

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference No. A57246)

1шт.

34

A38261

VALVE

- tubeless tire

2шт.

A66677

HUB

ASSEMBLY - wheel, for long wheel base (Used with A161274 spindle) (Order Components), Includes: Ref. 37 - 41

2шт.

37

A66678

HUB

- wheel (Order A66759)

1шт.

38

G15214

BEARING CUP

CUP - bearing, outer

1шт.

39

A61446

BEARING CUP

CUP - bearing, inne

1шт.

40

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

1шт.

41

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- inner

1шт.

42

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

RETAINER - seal, for long wheel base

1шт.
