Запчасти Case IH 2290 (4-158) - FLOOD LAMP ATTACHMENT, CAB MOUNTED (04) - ELECTRICAL SYSTEMS

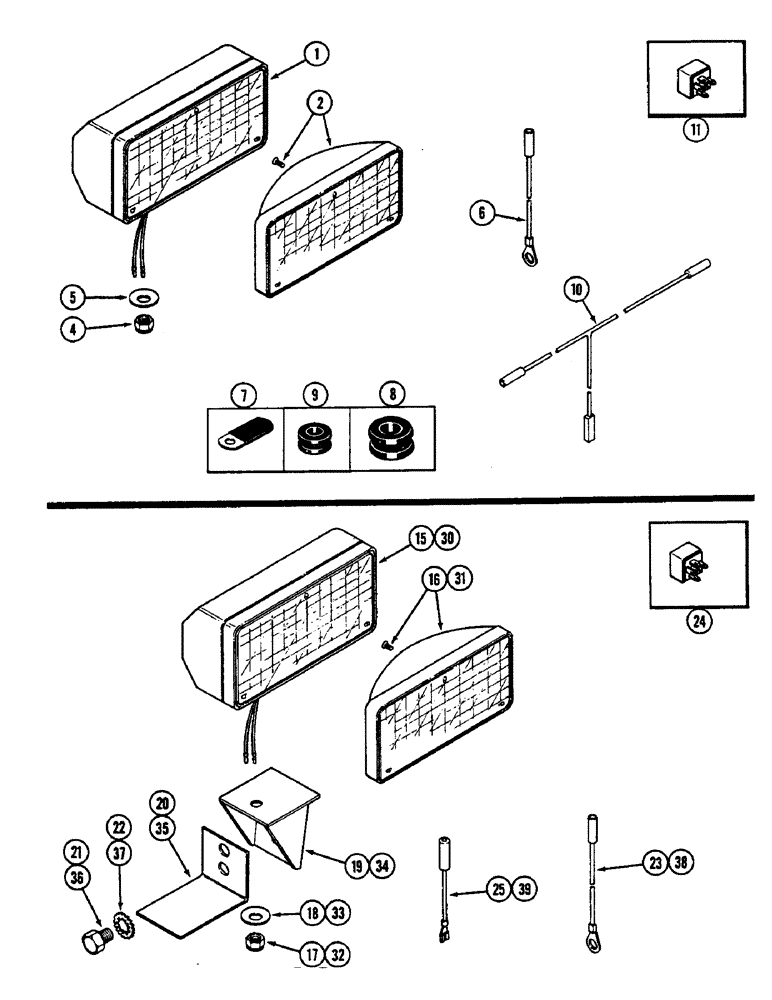

Схема запчастей Case IH 2290 - (4-158) - FLOOD LAMP ATTACHMENT, CAB MOUNTED (04) - ELECTRICAL SYSTEMS
25
16
4
22
37
8
34
35
1
33
23
24
17
5
2
20
15
11
39
30
31
36
38
9
19
6
18
32
10
21
7

Артикул

Название

Примечание

Количество

A165459

ATTACHMENT

- cab mounted flood lamp, Includes: Ref. 1-11

1шт.

1

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 2

1шт.

2

A48265

LAMP

- seal beam (Includes mounting screws)

1шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

5

D37049

WASHER

- pivot

1шт.

6

A147344

ELECTRICAL WIRE

WIRE - ground, 1/2 inch eyelet (13 MM)

1шт.

6

A147343

ELECTRICAL WIRE

WIRE - ground, 3/8 inch eyelet (10 MM)

1шт.

7

A22880

CLIP

CLAMP - wire

1шт.

8

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- wire, 1/2 inch ID (13 MM)

1шт.

9

L13765

GROMMET

- wire, 3/8 inch ID (10 MM)

1шт.

10

A142935

HARNESS

- front lamp

1шт.

11

A147176

RELAY

- lamp

1шт.

A165460

ATTACHMENT

- cab mounted flood lamp, Includes: Ref. 15-25

1шт.

15

A165192

LAMP

ASSEMBLY - flood, Includes: Ref. 16

2шт.

16

A48265

LAMP

- seal beam (Includes mounting screws)

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

D37049

WASHER

- pivot

2шт.

19

A149102

BRACKET

- lamp mounting

2шт.

20

A149792

GUARD

SHIELD - lamp terminal

2шт.

21

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

22

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

23

A147344

ELECTRICAL WIRE

WIRE - ground, 1/2 inch eyelet (13 MM)

2шт.

24

A147176

RELAY

- lamp

1шт.

25

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.

A165461

ATTACHMENT

- cab mounted flood lamp (Order components), Includes: Ref. 31

1шт.

30

A165192

LAMP

ASSEMBLY - flood

2шт.

31

A48265

LAMP

- seal beam (Includes mountings screws)

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

33

D37049

WASHER

- pivot

2шт.

34

A149102

BRACKET

- lamp mounting

2шт.

35

A149792

GUARD

SHIELD - lamp terminal

2шт.

36

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

37

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

38

A147344

ELECTRICAL WIRE

WIRE - ground, 1/2 inch eyelet (13 MM)

2шт.

39

A160351

ELECTRICAL WIRE

WIRE - adapter

2шт.

Выбрано товаров: 35
