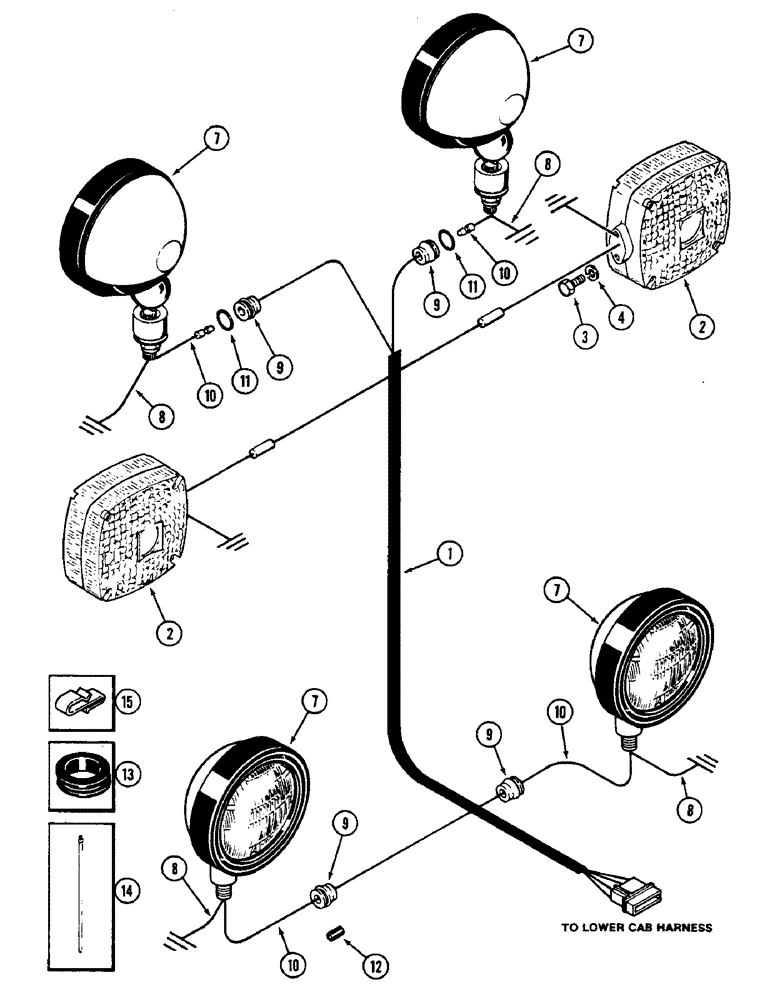

Запчасти Case IH 2290 (4-156) - CAB MOUNTED LIGHTS AND WIRING, CAB SERIAL NUMBER 12008153 AND AFTER (04) - ELECTRICAL SYSTEMS

1

F64416

HARNESS

- wire, cab mounted upper lights

1шт.

2

REF

INSTRUCTION

LAMP - flasher warner (See page 4-166)

2шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7

A145495

LAMP

- flood, front and rear (See Figure 4-162)

4шт.

8

A147344

ELECTRICAL WIRE

WIRE - ground, flood lamp, 8 inch black (203 MM)

4шт.

9

F64468

BUSHING

- terminal, flood lamp

4шт.

10

A160351

ELECTRICAL WIRE

WIRE - adapter 5 inch blue (127 MM)

4шт.

11

A61195

O-RING,0.364" ID x 0.5" OD

- terminal bushing, rear

2шт.

12

F64483

COVER

CAP - terminal

4шт.

13

353-701

BUSHING

- wire harness

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness

1шт.

15

214-1104

CLAMP

- harness

2шт.
