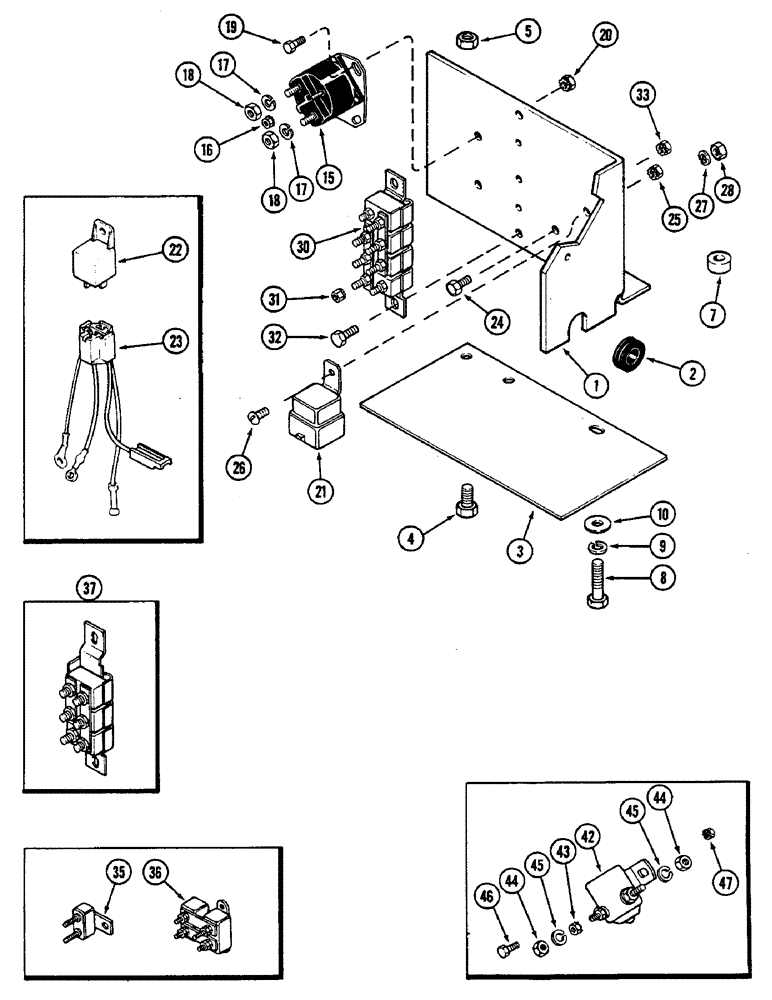

Запчасти Case IH 2290 (4-120) - SOLENOIDS AND CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

1

A165899

PLATE

- circuit breaker mounting (Replaces A161431)

1шт.

2

L103297

GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut

- engine harness

1шт.

3

A165900

PLATE

- solenoid shield

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

A67289

BUSHING

SPACER - bracket (If equipped)

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x MM)

2шт.

15

A39079

SOLENOID

ASSEMBLY - starter

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- terminal, Keps, no. 10-32

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

20

193-1006

NUT,Keps, w/LW, 1/4"-20

- Keps, 1/4 inch NC

2шт.

21

A167492

RELAY

- cab (Replaces A167627)

1шт.

22

A167627

RELAY

- cab (If equipped) (Order A167492)

1шт.

23

A165316

HARNESS

- relay

1шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

25

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex Keps, 1/4 inch NC

1шт.

26

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- relay mounting, pan head, no. 10-32 x 3/4 inch

1шт.

27

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

28

129-37

NUT,#10-32

1шт.

30

A160983

BREAKER

- circuit, 20 and 150 amperes (P.I.N. 9950031 and after)

1шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- Keps, no. 10-32

3шт.

32

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

33

193-1006

NUT,Keps, w/LW, 1/4"-20

- Keps, 1/4 inch NC

2шт.

35

A137775

BREAKER

- circuit, 20 ampere (Prior to P.I.N. 8841101)

1шт.

36

A147004

BREAKER

- circuit, 100 ampere (Prior to P.I.N. 8841101)

1шт.

37

A147549

BREAKER

- circuit, 20 and 100 amperes (P.I.N. 8841101 through P.I.N. 9950030)

1шт.

42

NSS

NOT SOLD SEPARAT

SOLENOID ASSEMBLY - cab electrical (Order A165315 and A165316), Includes: Ref. 43, 44, 45

1шт.

43

193-1000

NUT,Keps, w/LW,#10-32

- Keps, no. 10-32

1шт.

44

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

47

193-1006

NUT,Keps, w/LW, 1/4"-20

- Keps, 1/4 inch NC

2шт.
