Запчасти Case IH 2290 (4-116) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

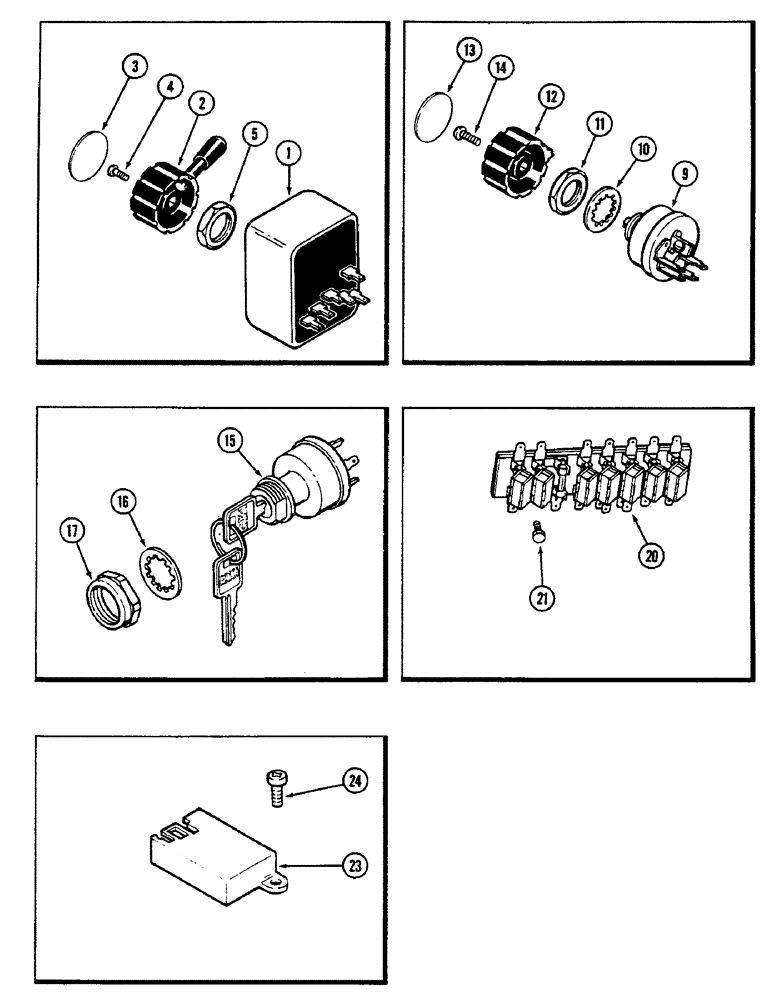

Схема запчастей Case IH 2290 - (4-116) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS
13
9
14
20
4
17
10
5
11
12
2
15
23
3
21
16
1
24

Артикул

Название

Примечание

Количество

1

A77184

SWITCH

- turn signal or flasher

1шт.

2

A141736

KNOB

- turn signal switch

1шт.

3

A160035

PLATE

- knob insert

1шт.

4

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- round head, no. 5-40 x 1/2 inch

1шт.

5

131-428

LOCK NUT,PAL, 3/4"-20

NUT - Palnut, 3/4-20 inch

1шт.

9

A141607

SWITCH

- lamp

1шт.

10

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal Shakeproof, 5/8 inch

1шт.

11

A20467

NUT

- lock, light switch

1шт.

12

A141735

KNOB

- light switch

1шт.

13

A160035

PLATE

- knob insert

1шт.

14

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- pan head, no. 8-24 x 5/8 inch

1шт.

15

L61053

IGNITION SWITCH

SWITCH - starting

1шт.

16

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal Shakeproof, 1 inch

1шт.

17

A145855

NUT

- lock, Serial Range: switch-panel

1шт.

20

A147180

HOLDER

- fuse (Prior to P.I.N. 8841101)

1шт.

21

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, no. 10-24 x 1/2 inch

2шт.

23

A162294

CONNECTOR, ELEC

MODULE - coolant level indicator (Replaces A147382)

1шт.

24

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, no. 10-24 x 1/2 inch

1шт.

Выбрано товаров: 18
