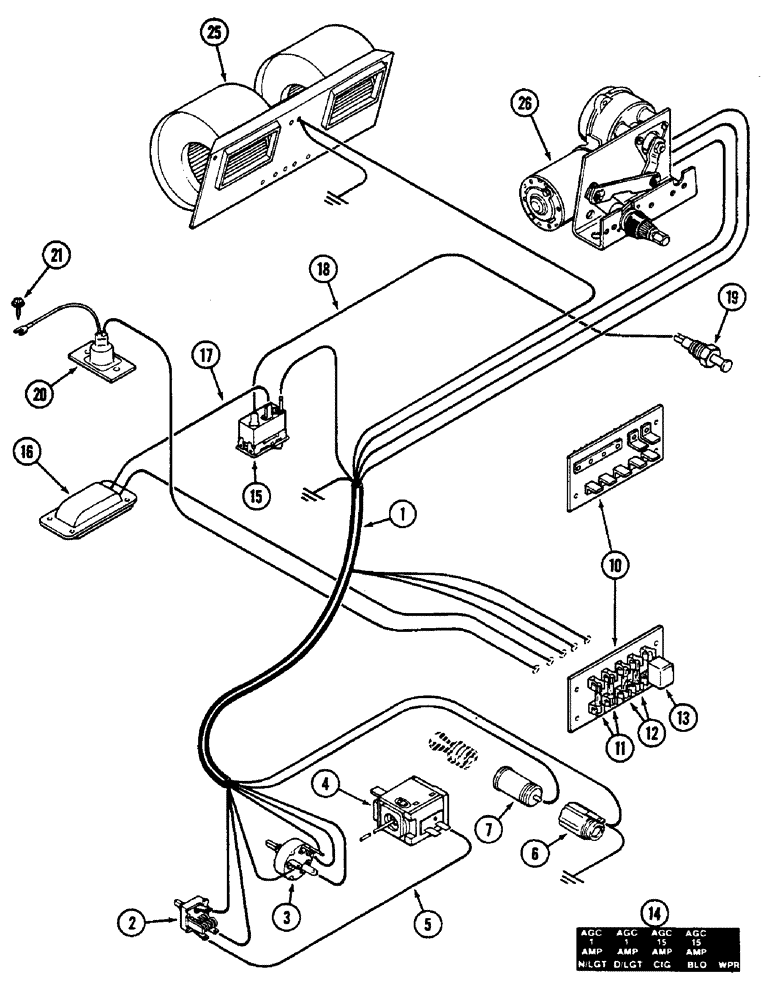

Запчасти Case IH 2290 (4-106) - CAB HEADLINER WIRING, PRIOR TO CAB SERIAL NUMBER 12008153 (04) - ELECTRICAL SYSTEMS

1

F98110

HARNESS

- main wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower motor (See Figure 9-598)

1шт.

3

REF

INSTRUCTION

SWITCH - wiper motor (See Figure 9-598)

1шт.

4

REF

INSTRUCTION

SWITCH - cab temperature (See Figure 9-598)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - temperature switch to blower switch, black, 6 inch (152 MM)

1шт.

6

REF

INSTRUCTION

SHELL - lighter socket (See Figure 9-598)

1шт.

7

REF

INSTRUCTION

SOCKET - lighter (See Figure 9-598)

1шт.

10

REF

INSTRUCTION

BLOCK - fuse (See Figure 9-574)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- lighter and console lamp (1 amp)

2шт.

12

223-15

FUSE,15 Amp, Type 3AG

- wiper and blower (15 amp)

2шт.

13

F64181

BREAKER

- circuit

1шт.

14

321-3850

DECAL

- fuse block

1шт.

15

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 9-574)

1шт.

16

REF

INSTRUCTION

LAMP - dome (See Figure 9-574)

1шт.

17

F64126

ELECTRICAL WIRE

WIRE - switch to dome lamp, black, 4 inch (102 MM)

1шт.

18

F64127

ELECTRICAL WIRE

WIRE - door switch, white, 70 foot (2 M)

1шт.

19

F63895

SWITCH

- door, dome lamp

1шт.

20

REF

INSTRUCTION

LAMP - console (See Figure 9-574)

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - Phillips self tapping, no. 10-16 x 1/2 inch

1шт.

25

REF

INSTRUCTION

BLOWER - cab air (See Figure 9-582 and 9-584)

1шт.

26

REF

INSTRUCTION

MOTOR - wiper (See Figure 9-600)

1шт.
