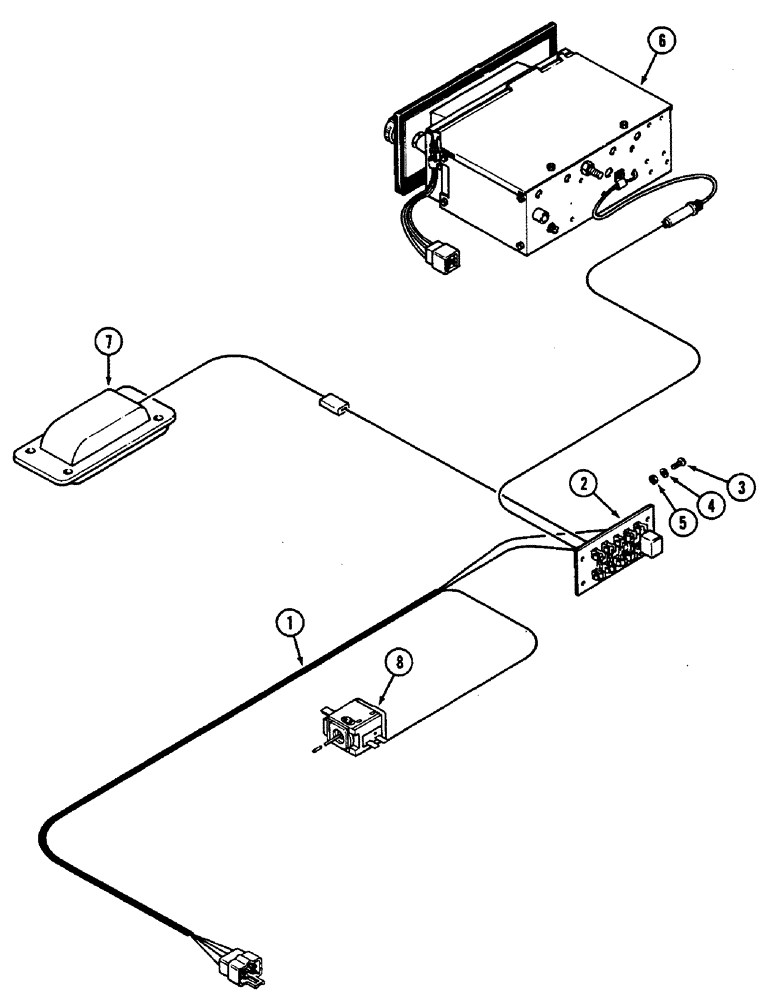

Запчасти Case IH 2290 (4-102) - CAB LOWER WIRING HARNESS, PRIOR TO CAB SERIAL NUMBER 12008153 (04) - ELECTRICAL SYSTEMS

1

F98112

HARNESS

- cab to engine harness

1шт.

2

F98113

BLOCK

- fuse

1шт.

3

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- round head, brass no. 5-40 x 1/2 inch

1шт.

4

195-14

WASHER,#12

- lock, no. 5

1шт.

5

129-630

NUT,#5-40, Brass

- hex, brass no. 5-40

1шт.

6

REF

INSTRUCTION

RADIO - (See page 9-604)

1шт.

7

REF

INSTRUCTION

LAMP - dome (See Figure 9-574)

1шт.

8

REF

INSTRUCTION

SWITCH - temperature control (See Figure 9-598)

1шт.
