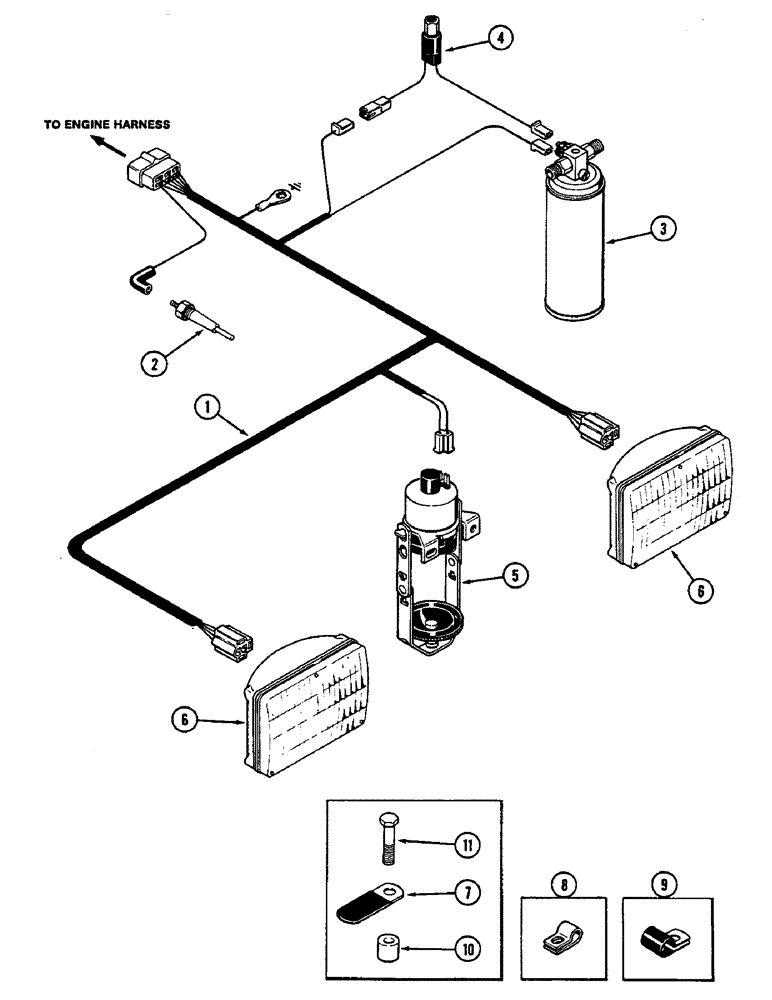

Запчасти Case IH 2290 (4-100) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A147719

HARNESS

- forward

1шт.

2

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

3

REF

INSTRUCTION

RECEIVER-DRIER - air conditioning (See Figure 9-612)

1шт.

4

REF

INSTRUCTION

SWITCH - air conditioning cutout (See Figure 9-612)

1шт.

5

A143381

SOLENOID

- ether start (See Figure 2-14)

1шт.

6

A139458

LAMP

LIGHT - head (See Figure 4-166)

2шт.

7

A37179

CLIP

- wire

1шт.

8

A7922

CLIP

- wire

1шт.

9

49852

PTO SHAFT

CLIP - wire

1шт.

10

A140434

BUSHING

SPACER - clip

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.
