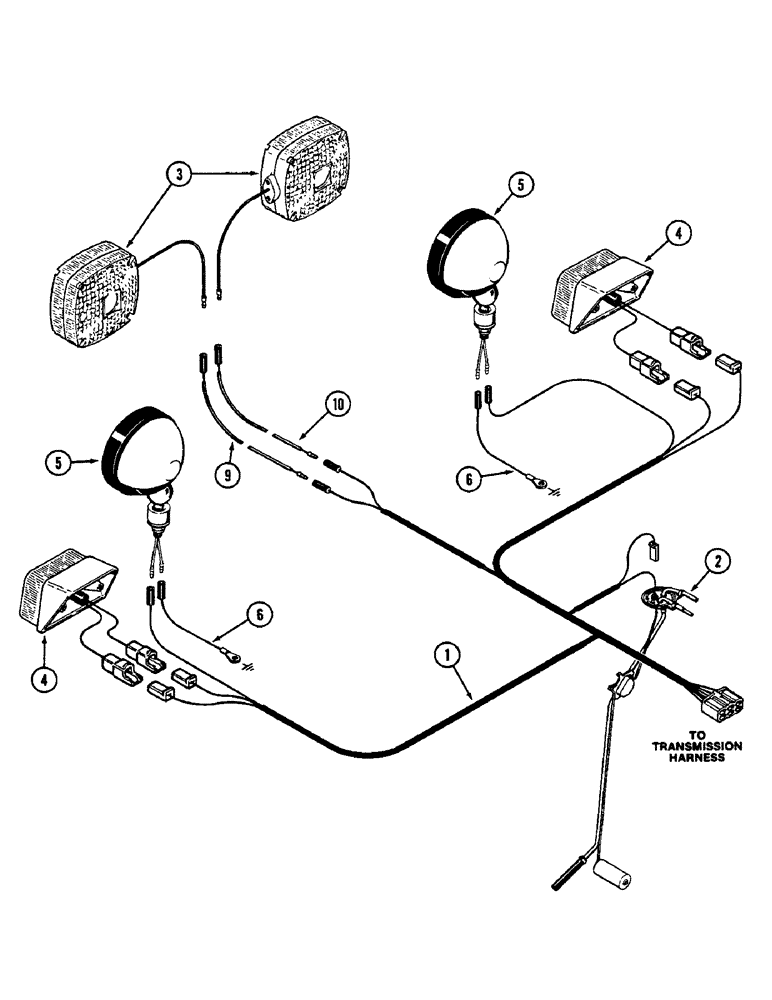

Запчасти Case IH 2290 (4-098) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A160587

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-72)

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-166)

2шт.

4

A143925

LAMP

- tail (See Figure 4-166)

2шт.

5

A145495

LAMP

- rear flood (See Figure 4-160)

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - rear flood ground

3шт.

9

A160292

ELECTRICAL WIRE

WIRE - right flasher light, 90 inch (2 286 MM) (Without cab)

1шт.

10

A160293

ELECTRICAL WIRE

WIRE - left flasher light, 12 inch (305 MM) (Without cab)

1шт.
