(4-096) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101

Запчасти Case IH 2290 (4-096) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

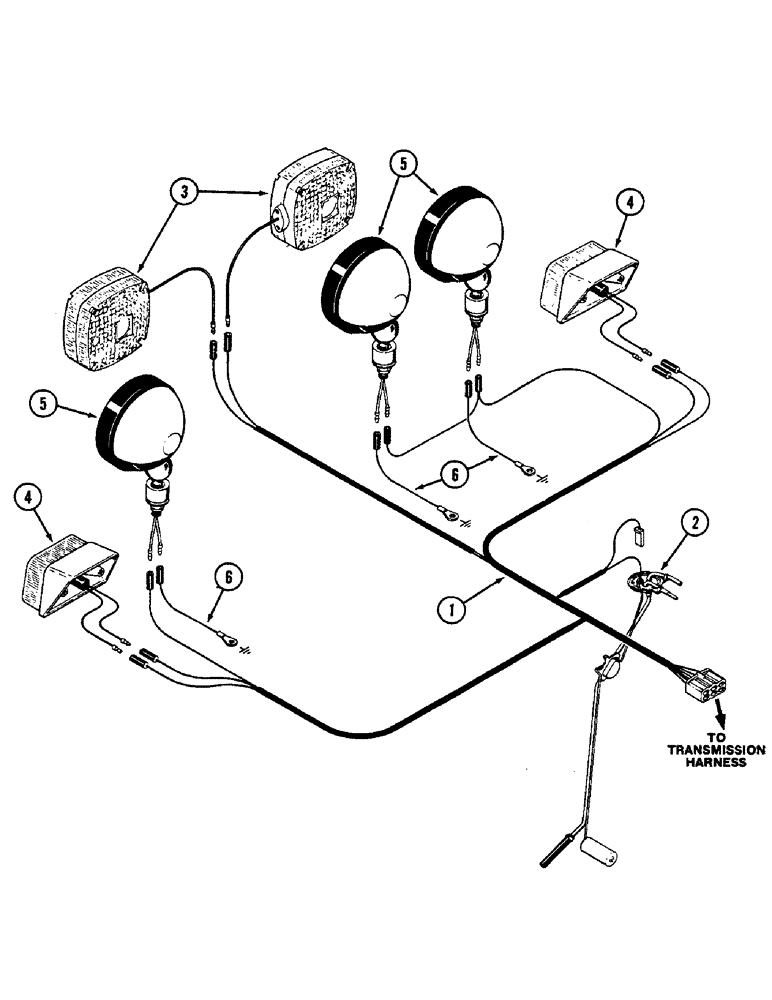

Схема запчастей Case IH 2290 - (4-096) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS
3
5
6
5
1
6
2
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A145614

HARNESS

- rear lights

1шт.

2

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-72)

1шт.

3

REF

INSTRUCTION

LIGHT - turn signal or flasher (See page 4-166)

2шт.

4

A143925

LAMP

TAILLIGHT - (See Figure 4-166)

2шт.

5

A145495

LAMP

FLOODLIGHT - rear (See Figure 4-160)

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - ground, floodlight

3шт.
