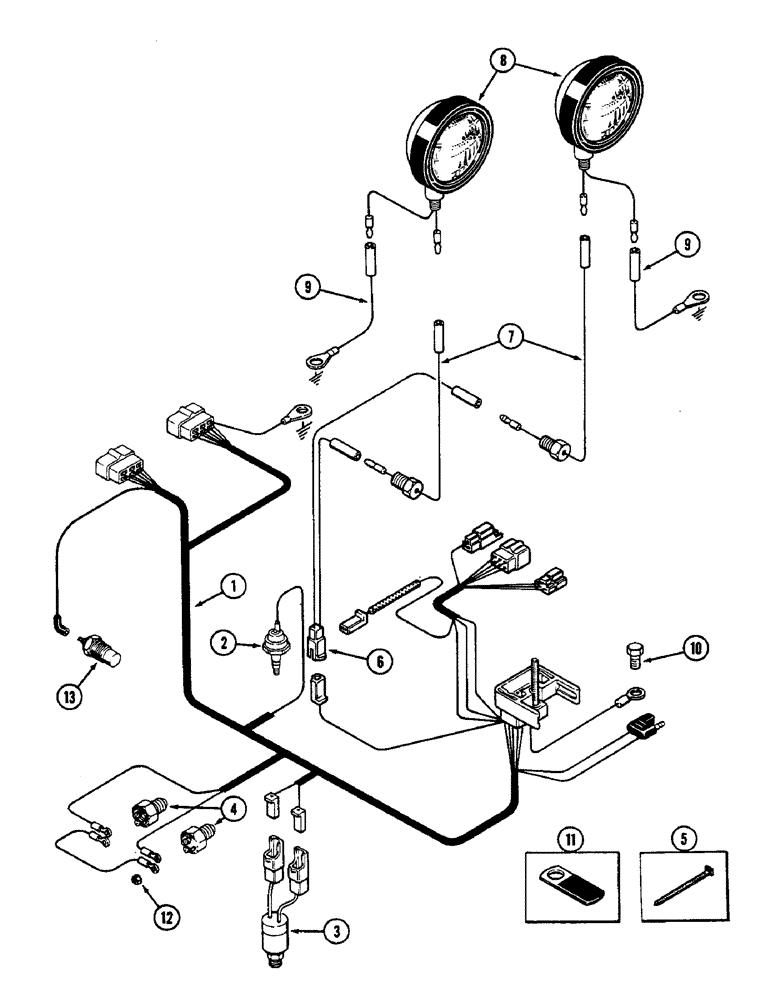

Запчасти Case IH 2290 (4-094) - TRANSMISSION HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A162761

HARNESS

- transmission (Replaces A160585)

1шт.

2

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure (See Figure 8-370)

1шт.

3

A162422

SWITCH

- transmission oil pressure (See Figure 6-258)

1шт.

4

A160237

SWITCH

- neutral start (See Figure 6-230 and 6-262)

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

A147345

HARNESS

- front flood lamps

1шт.

7

A147346

HARNESS

WIRE - front flood lamps

2шт.

8

A145495

LAMP

- front flood (See Figure 4-162)

2шт.

9

A147344

ELECTRICAL WIRE

WIRE - front flood ground

2шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

11

A38066

CLIP

- wire to PTO housing

1шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex Keps, no. 8-32

4шт.

13

A154283

SWITCH

- transmission temperature

1шт.
