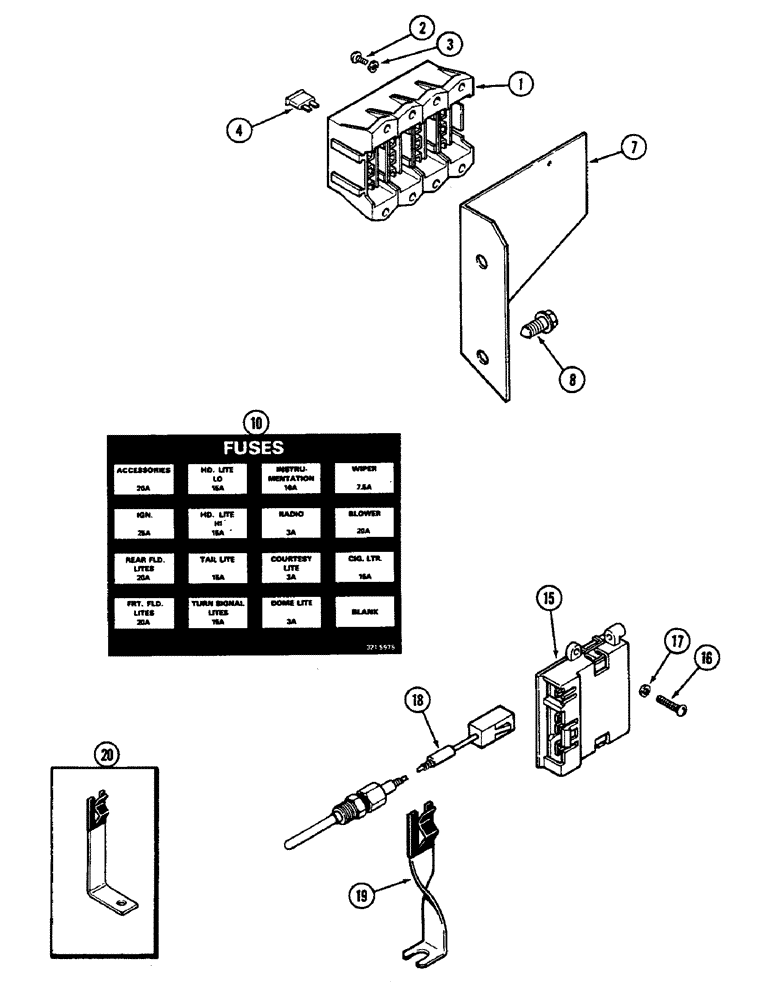

Запчасти Case IH 2290 (4-082) - FUSES AND FUSE HOLDER, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

HOLDER - fuse (Part of harness. See page 4-80)

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, no. 10-24 x 1/2 inch

3шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

4

A149796

FUSE

- 3 ampere (Violet code)

3шт.

4

A149799

FUSE

- 7.5 ampere (Brown code)

1шт.

4

A149800

FUSE,10 Amp

- 10 ampere (Red code)

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue code)

5шт.

4

A149802

FUSE

- 20 ampere (Yellow code)

4шт.

4

A149803

FUSE,25 Amp

- 25 ampere (White code)

1шт.

7

A149838

PLATE

- mounting, fuse holder

1шт.

8

187-1046

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - hex washer head self tapping, 3/8 x 5/8 inch

2шт.

10

321-5975

DECAL

- fuse location

1шт.

15

A167331

AMPLIFIER

MODULE - pyrometer (Replaces A154256), thermocouple p.i.n. 8841101 and after

1шт.

16

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, no. 10-24 x 1/2 inch, pyrometer module and thermocouple p.i.n. 8841101 and after

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Pyrometer module and thermocouple p.i.n. 8841101 and after #10

2шт.

18

A154255

TRANSMITTER

THERMOCOUPLE - exhaust pipe to module, pyrometer module p.i.n. 8841101 and after

1шт.

19

A145858

BRACKET

- thermocouple to exhaust pipe clamp (Order A147023), pyrometer module and p.i.n. 8841101 and after

1шт.

20

A147023

BRACKET

- thermocouple to exhaust pipe clamp, pyrometer module and p.i.n. 8841101 and after

1шт.
