Запчасти Case IH 2290 (3-072) - FUEL TANK AND LINES, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

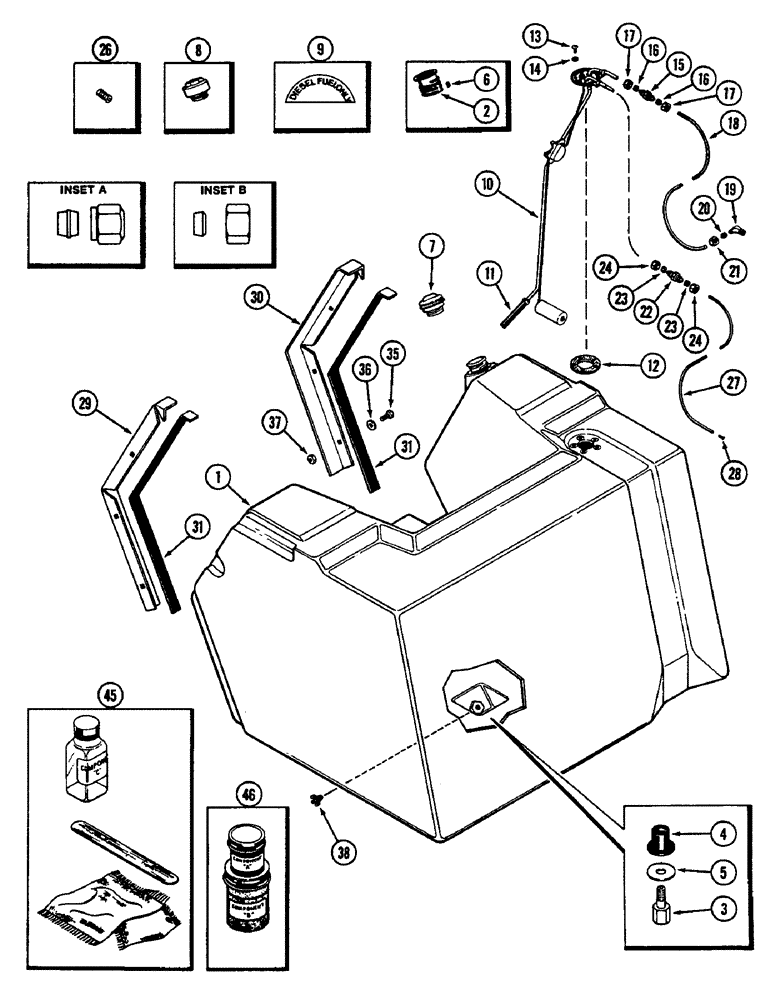

Схема запчастей Case IH 2290 - (3-072) - FUEL TANK AND LINES, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
16
9
27
30
29
3
45
20
7
5
21
26
17
18
28
10
12
35
15
23
14
4
13
17
23
6
8
37
31
2
16
31
24
1
11
22
24
19
46
36
38

Артикул

Название

Примечание

Количество

1

A162634

TANK

ASSEMBLY - fuel, 65 gallons (246 litres) (Replaces A147109 and A160468) (Tractor P.I.N. 9913388 and after) (See Note), Includes: Ref. 2-7

1шт.

2

A147375

NECK FILLER

INSERT - filler neck (See ref 14)

1шт.

3

A65890

STUD,3/8" - 16 x 1/4" NPT

- drain valve

1шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

5

A65892

WASHER

- stud

1шт.

6

A161306

LOCK

NUT - filler neck

2шт.

7

A160226

CAP

- fuel filler

1шт.

8

A160381

CAP

ASSEMBLY - locking, with keys

1шт.

9

321-4493

DECAL

- Diesel Fuel Only

1шт.

10

A161769

TRANSMITTER

UNIT - sending, fuel gauge (Replaces A139800), Includes: Ref. 11

1шт.

11

A47706

STRAINER ELEMENT

STRAINER - fuel

1шт.

12

A11822

GASKET

- sending unit

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, no. 10-24 x 1/2 inch

5шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

15

222-2651

HYD CONNECTOR,17/32"-24

UNION ASSEMBLY - 3/8 tube to 3/8 inch tube (Outlet tube) (Replaces A139967), Includes: Ref. 16, 17

1шт.

16

222-2611

SLEEVE

- 3/8 inch tube (10 MM)

2шт.

17

222-2601

NUT

NUT - 3/8 inch tube (10 MM)

2шт.

18

A67323

TUBE

- tank to pump (Order A167912 tube 152 inch)

1шт.

19

222-2726

ELBOW,45 Degree, 17/32"-24 x 1/4" NPT, Comp

- 45 degree, 3/8 inch tube, (See inset A)

1шт.

20

222-2611

SLEEVE

- 3/8 inch tube (See inset A)

1шт.

21

222-2601

NUT

NUT - 3/8 inch tube (See inset A)

1шт.

19

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 3/8 inch tube, 45 degree (Order 222-2726) (See inset B), Includes: Ref. 20, 21

1шт.

20

222-5186

SLEEVE,3/8" Tube

- 3/8 inch tube (10 MM) (See inset B)

1шт.

21

222-5181

NUT,9/16"-24

NUT - 3/8 inch tube (10 MM) (See inset B)

1шт.

22

222-2650

HYD CONNECTOR,7/16"-24

CONNECTOR - straight, 1/4 inch tube (See inset A), Includes: Ref. 23, 24

1шт.

23

222-2610

SLEEVE

- 1/4 inch tube (See inset A)

2шт.

24

222-2600

NUT

NUT - 1/4 inch tube (See inset A)

2шт.

A139968

FITTING

UNION - 1/4 inch tube (Order 222-2650) (See inset B)

1шт.

27

A67322

TUBE

- return (Order L108947)

1шт.

28

A141160

INSERT

- nylon tube

1шт.

29

A139959

BRACKET

RETAINER - right, fuel tank

1шт.

30

A139961

BRACKET

RETAINER - left, fuel tank

1шт.

31

A139339

SEAL

- retainer, 13/16 x 1 x 28 inch (24 x 25 x 711 MM)

2шт.

35

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

36

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

6шт.

37

131-133

NUT,Ret, 3/8"-16

6шт.

38

A23656

COCK, DRAIN

VALVE - drain (1/4 inch PT)

1шт.

45

A44635

KIT

1шт.

46

A44636

KIT

1шт.

Выбрано товаров: 39
