Запчасти Case IH 2290 (3-062) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION, CONTINUED (03) - FUEL SYSTEM

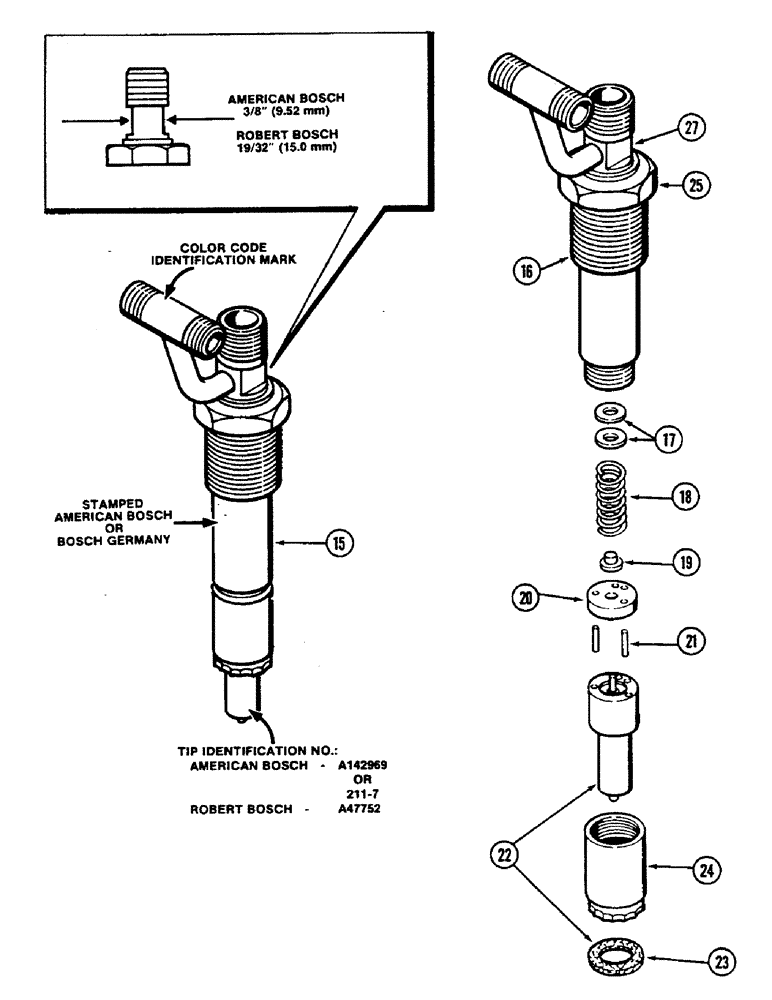

Схема запчастей Case IH 2290 - (3-062) - FUEL INJECTOR NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION, CONTINUED (03) - FUEL SYSTEM
16
17
24
18
27
23
20
25
19
21
15
22

Артикул

Название

Примечание

Количество

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection (Continue for Figure 3-60), Includes: Ref. 15, 16, 17

6шт.

A156327R

REMAN-INJECT NOZZLE

2290 (1/79-12/83)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection (Robert Bosch) (See Note B), Includes: Ref. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A48186

KIT

- shim, nozzle opening pressure (One kit will repair six nozzles), Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.00 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.04 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.08 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.10 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.14 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.18 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.20 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.24 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.28 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.30 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.34 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.38 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.40 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.44 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.48 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.50 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.54 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.58 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.60 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.64 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.68 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.70 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.74 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.78 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.80 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.84 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.88 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.90 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.94 MM (5 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - nozzle, 1.98 MM (5 in kit)

1шт.

18

A48198

SPRING

- nozzle pressure

1шт.

19

A48203

SEAT

- nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47752

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

A76640

GASKET

- nozzle (See Note "A")

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.

25

A48197

NUT

- nozzle

1шт.

26

A48202

RING

- retaining

1шт.

27

A48196

RING

- retaining

1шт.

Выбрано товаров: 46
