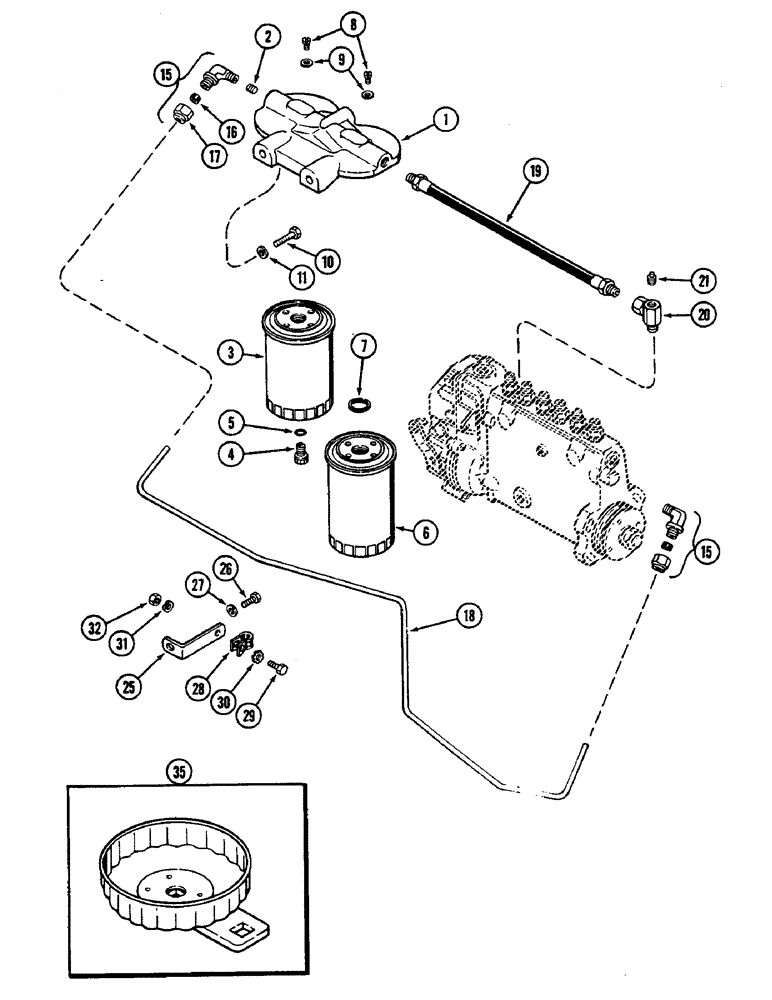

Запчасти Case IH 2290 (3-056) - FUEL INJECTION FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A155489
HEAD
ASSEMBLY - first and second stage filter (Replaces A62339), Includes: Ref. 2
1шт.
2
221-1849
PLUG
- 1/8 inch PT (In head)
1шт.
A44068
FUEL FILTER
ELEMENT KIT - filters, Includes: Ref. 3-7
1шт.
3
NSS
NOT SOLD SEPARAT
FILTER - first stage (Order A44068) (Reference no. A58712), Includes: Ref. 4, 5
1шт.
4
G49080
PLUG
- 10 point head, 3/8 inch NC (Plastic)
1шт.
5
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk
1шт.
6
NSS
NOT SOLD SEPARAT
FILTER - second stage (Order A44068) (Reference no. A58713), Includes: Ref. 7
1шт.
7
NSS
NOT SOLD SEPARAT
GASKET - second stage filter (Order A44068) (See Note) (Reference no. A42315)
1шт.
8
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- air bleed
1шт.
9
A146368
WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk
- bleed screw
2шт.
10
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
11
92-6
LOCK WASHER,3/8"
2шт.
15
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSEMBLY - fuel line, 90 degree, Includes: Ref. 16, 17
2шт.
16
222-103
SLEEVE,5/16" Tube
- for 3/8 inch tube (10 mm)
1шт.
17
222-113
TUBE NUT,9/16"-24
NUT - for 3/8 inch tube (10 MM)
1шт.
18
A157329
TUBE
- transfer pump to first stage filter (Replaces A62342)
1шт.
19
A65564
HOSE,9.53mm ID x 390.65mm L, SAE 100R6
- filter to pump, 15-3/8 inch long (391 MM)
1шт.
20
A20539
FITTING
UNION - switch (Injection pump)
1шт.
21
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - union, 1/8 inch PT
1шт.
25
A64856
BRACKET
- tube support
1шт.
26
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
1шт.
27
92-6
LOCK WASHER,3/8"
1шт.
28
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP - tube, for 3/8 inch tube
1шт.
29
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
30
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
31
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
35
A64761
TOOL
- filter removing
1шт.
Выбрано товаров: 27
