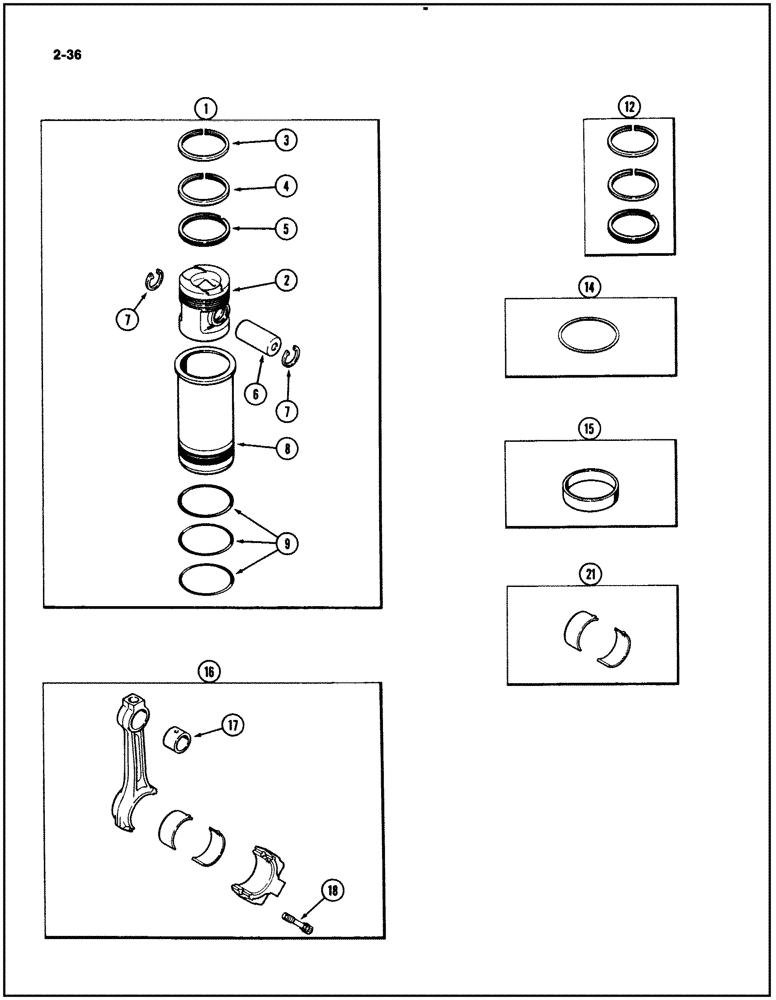

Запчасти Case IH 2290 (2-044) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDT DIESEL ENGINE (02) - ENGINE

1

A151079

KIT

PISTON AND SLEEVE KIT - Includes: Ref. 2-9

6шт.

2

A153323

PISTON

PISTON - 4-5/8 inch bore (107 MM)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order ref 12)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order ref 12)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order ref 12)

1шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston (Order ref 13)

1шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

2шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston (3 grooves)

1шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

3шт.

12

A154658

RING

RING KIT - replacement (Set of 1)

6шт.

14

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 MM)

1шт.

14

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 MM)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

16

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 17, 18

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

17

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap, connecting rods

2шт.

21

A43173

BEARING LINER

LINERS - rod bearing (Set of 2) standard, connecting rods

6шт.

21

A43174

BEARING LINER

LINERS - rod bearing (Set of 2) 0.002 inch undersize (0.0508 MM), connecting rods

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINERS - rod bearing (Set of 2) 0.010 inch undersize (0.254 MM), connecting rods

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINERS - rod bearing (Set of 2) 0.020 inch undersize (0.508 MM), connecting rods

6шт.

21

A43177

BEARING LINER

LINERS - rod bearing (Set of 2) 0.030 inch undersize (0.762 MM), connecting rods

6шт.
