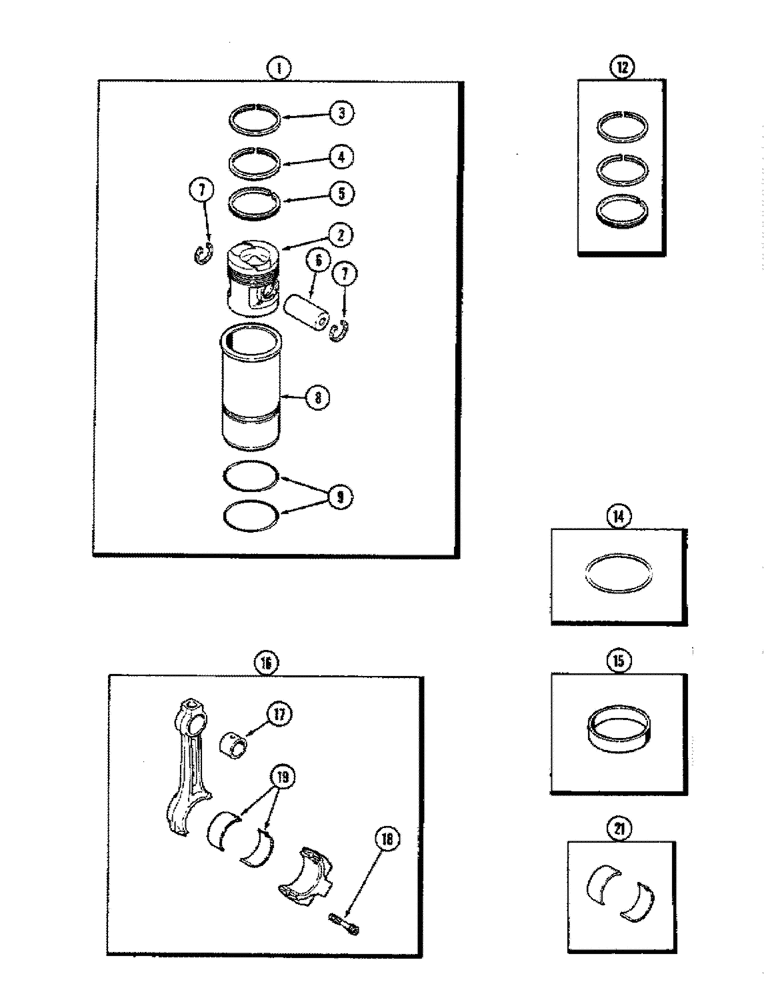

Запчасти Case IH 2290 (2-042) - PISTON ASSEMBLY, WITH TWO GROOVE SLEEVE, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PISTON AND SLEEVE KIT - (Order A151079, see Figure 2-44), Includes: Ref. 2-9
3шт.
2
A153323
PISTON
PISTON - cylinder 4-5/8 inch bore (117 MM) (Aluminum)
2шт.
3
NSS
NOT SOLD SEPARAT
RING - compression (Top groove) (Order ref 12)
2шт.
4
NSS
NOT SOLD SEPARAT
RING - compression (Second groove) (Order ref 12)
2шт.
5
NSS
NOT SOLD SEPARAT
RING - oil control (Bottom groove) (Order ref 12)
2шт.
6
A140607
PISTON PIN,41.27mm OD x 93.34mm L
PIN - piston (Order ref 13)
2шт.
7
D27833
SNAP RING,1.625", Int, #162
Ring, Snap, , piston 1.625", Int, #162
4шт.
8
REF
INSTRUCTION
SLEEVE - piston (Cylinder liner) (Order 1-A153638 and 3-A144667)
2шт.
9
A146616
O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro
O-RING - piston sleeve
4шт.
12
A154658
RING
RING KIT - replacement (Set of 1) (Replaces A44054)
6шт.
14
A148554
SHIM
SHIM - sleeve, 0.005 inch (0.127 MM)
1шт.
14
A148553
SHIM
SHIM - sleeve, 0.010 inch (0.254 MM)
1шт.
15
A150327
BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L
BUSHING - sleeve (Repairs only)
1шт.
16
A62954
ROD, CONNECTING
ROD ASSEMBLY - connecting, Includes: Ref. 17, 18
6шт.
AR62954
REMAN-CONNECTING ROD
Remanufactured, CONNECTING ROD, N.A. Only
6шт.
AC62954
CORE-ROD CONNECTING
CORE-CONNECTING ROD Return Number, N.A. Only
6шт.
17
A61241
BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L
BUSHING - piston pin, connecting rods
1шт.
18
A65757
FLANGE BOLT,1/2" - 20 x 2.31"
BOLT - cap, connecting rods
2шт.
19
NSS
NOT SOLD SEPARAT
LINER - bearing, connecting rod (Order ref 21)
12шт.
21
A43173
BEARING LINER
LINERS - rod bearing (Set of 2) standard, connecting rod
6шт.
21
A43174
BEARING LINER
LINERS - rod bearing (Set of 2) 0.002 inch undersize (0.051 MM), connecting rods
6шт.
21
A43175
BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W
LINERS - rod bearing (Set of 2) 0.010 inch undersize (0.254 MM), connecting rods
6шт.
21
A43176
BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W
LINERS - rod bearing (Set of 2) 0.020 inch undersize (0.508 MM), connecting rods
6шт.
21
A43177
BEARING LINER
LINERS - rod bearing (Set of 2) 0.030 inch undersize (0.762 MM), connecting rods
6шт.
Выбрано товаров: 24
